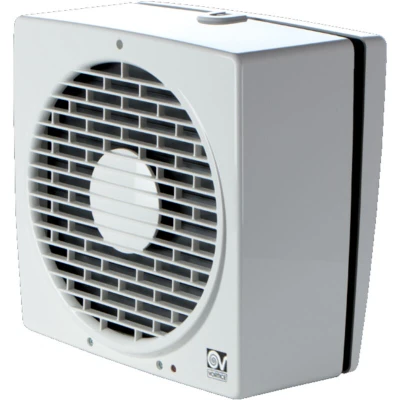

Vortice 12412 ELECTROSOCIAL 300/12 AR AUTOM REV
Description
ManoMano
Dimensions and technical details 220-240 V ~ 50 Hz Colour: white Material: impact-resistant, UV-resistant ABS plastic Nominal size: 300 mm Speed levels: 1 Wattage: 45 W Current consumption: 0.21 A Revolutions per minute supply air: 1085 Revolutions per minute exhaust air: 840 Max. airflow rate supply air: 700 m³/h Max. airflow rate exhaust air: 1050 m³/h Sound pressure level Lp-3m: 40.2 dB(A) IP rating: IPX4 Protection class: II Max. ambient temperature: +50°C Weight: 6.13 kg Plain bearings Automated internal shutter flap prevents cold air from coming in once the fan is turned off (can be opened manually) Optional CR controllers allow reversing and speed control Model A B C D E min. E max. Ø Cutout 300/12 390 mm 393 mm 31 mm 147 mm 2 mm 38 mm 324-329 mm
Description
(2)
Dimensions and technical details 220-240 V ~ 50 Hz Colour: white Material: impact-resistant, UV-resistant ABS plastic Nominal size: 300 mm Speed levels: 1 Wattage: 45 W Current consumption: 0.21 A Revolutions per minute supply air: 1085 Revolutions per minute exhaust air: 840 Max. airflow rate supply air: 700 m³/h Max. airflow rate exhaust air: 1050 m³/h Sound pressure level Lp-3m: 40.2 dB(A) IP rating: IPX4 Protection class: II Max. ambient temperature: +50°C Weight: 6.13 kg Plain bearings Automated internal shutter flap prevents cold air from coming in once the fan is turned off (can be opened manually) Optional CR controllers allow reversing and speed control Model A B C D E min. E max. Ø Cutout 300/12 390 mm 393 mm 31 mm 147 mm 2 mm 38 mm 324-329 mm
AmazonMADE IN ITALY Brand quality and reliability 2 years warranty
