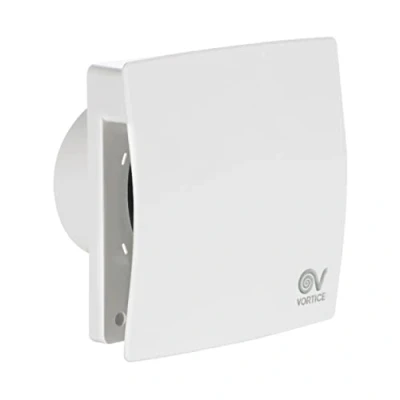

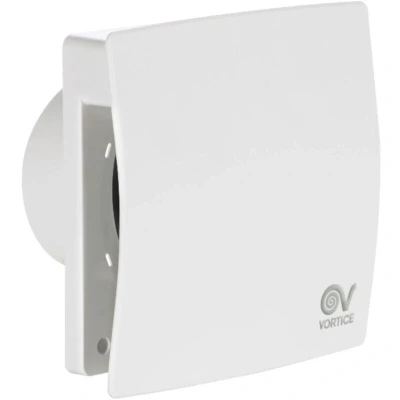

Vortice 4CAJAS20W2 Mex 100 4 LL 1S, 9 W, 220 V, White, 17.3 x 12.6 cm

General description The Punto Evo Flexo MEX 100/4 LL 1S extractor fan is designed for efficient air extraction in small spaces such as bathrooms and utility rooms. It features a sleek white housing made of UV-resistant plastic that does not yellow over time. The fan is equipped with a thermal overload protection system and an integral backdraught valve to prevent cold air from entering the space. Technical specifications Nominal size: 100 mm Voltage: 230 V ~ 50 Hz Wattage: 9 W Current consumption: 0.052 A Speed levels: 1 Revolutions per minute: 2175 Airflow rate: 90 m³/h Sound pressure level Lp-3m: 26.9 dB(A) Total pressure Pmax: 39.23 Pa Max. temperature for continuous operation: +50°C Protection class: IP45 Insulation class: II Front cover dimensions: 173 x 173 x 50 mm Total depth: 126 mm Diameter duct connector: 98 mm Weight: 0.6 kg Installation The extractor fan can be mounted on the wall or ceiling. An on/off switch must be provided on-site for operation. Usage This extractor fan
