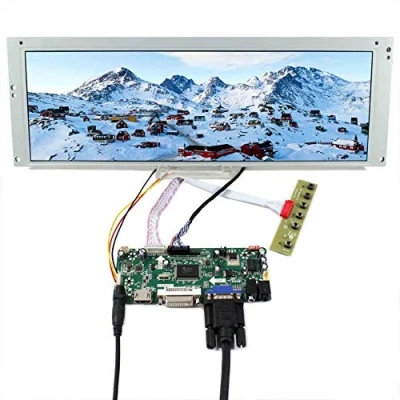

VSDISPLAY 14.9 inch LTA149B780F 1280x390 TFT LCD Screen and HD MI VGA DVI Auido LVDs Controller Board,for DIY Marquee Monitor

14.9" industrial wide Screen LTA149B780F, Resolution 1280x390 60HZ,with Best View on 6 o'clock,Display Colors 262K, Display Area 360.94 × 109.98 (H×V)mm.Brightness 400 cd/m2 (Typ.),Contrast Ratio 500:1 (Typ.) ,Interface LVDS (1 ch, 6-bit) , 20 pins , Connector,Backlight WLED LCD Controller Board video input: VGA DVI,Audio Output: Speaker Connector (recommend use : 8ohm 2W 4Pin PH2.0 Speaker).@@@TWZmCRQZFm1+9SKXDCHlqGnuVIZHHLd7@@@ you want to protect the board ,recommend Case:Controller Board Case Acrylic Material White Case For 68676 Protect Case. 【Input Power : 12V DC more than 2A ,Port size :5.5x2.1mm, pls prepare powe adapter by yourself. The native resolution for this screen is 1280x390 @ 60Hz,Pls set the video/picture resolution correctly,and Pls Make sure to select scaling at full-screen. when setting well, the monitor shows a clear and clean image. Pls ensure that the board is used in an insulated environment to avoid short circuits.Any question ,Pls keep us informed firstly ,we will give you best solution in 12 hours.
