VSDISPLAY 7 inch 1280x800 N070ICG LD1 IPS LCD Screen and HD MI Audio Controller Board
|
£ 76.00 | To Shop |
Description
Amazon

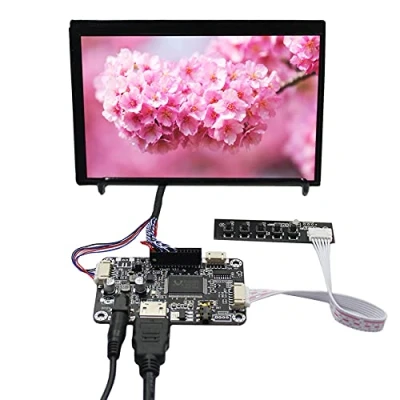

7 inch IPS screen ,with 1280x800 resolution ,400 nit brightness, Contrast Ratio 800:1,Display Area 149.76 × 93.6(H×V)mm.Signal Interface 40pins LVDS (1 ch, 6-bit) , WLED Backlight,works stable and anti-jamming. Video input: HD-MI ,Please use in insulated environment. Connecting cables and ports as picture ,power on ,LED light become green ,then connect signal cable ,the screen will be lit up . Input Power Supply:12V DC more than 2A ,Port size :5.5x2.1mm, pls prepare power adapter by yourself. Packing lists : 1× HD-MI LCD Controller Board ,1× 7inch N070ICG-LD1 1280X800 LCD Screen,1× Converter Board,1× LVDS Cable,1× Keyboard With Cable
Compare webshops (1)
Description
(1)
7 inch IPS screen ,with 1280x800 resolution ,400 nit brightness, Contrast Ratio 800:1,Display Area 149.76 × 93.6(H×V)mm.Signal Interface 40pins LVDS (1 ch, 6-bit) , WLED Backlight,works stable and anti-jamming. Video input: HD-MI ,Please use in insulated environment. Connecting cables and ports as picture ,power on ,LED light become green ,then connect signal cable ,the screen will be lit up . Input Power Supply:12V DC more than 2A ,Port size :5.5x2.1mm, pls prepare power adapter by yourself. Packing lists : 1× HD-MI LCD Controller Board ,1× 7inch N070ICG-LD1 1280X800 LCD Screen,1× Converter Board,1× LVDS Cable,1× Keyboard With Cable
