Waveshare 10.3inch Flexible E Ink Display HAT for Raspberry Pi IT8951 Controller USB/SPI/I80 Interface 1872x1404 Paper Panels Supports Partial Refresh No Backlight

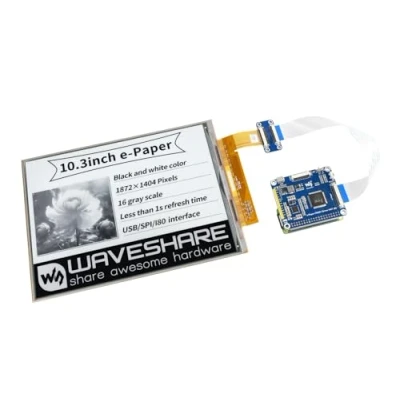

This is a flexible E-Ink display HAT for Raspberry Pi, 10.3inch, 1872×1404 resolution, with embedded controller IT8951, communicating via USB/SPI/I80/I2C interface, supports partial refresh. Due to the advantages like low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as ebook reader, e-ink display, industrial instruments, and so on. Flexible e-Paper, No backlight, keeps displaying last content for a long time even when power down. Low power consumption, basically power is only required for refreshing. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards. USB/SPI/I80/I2C interface, for connecting with host boards like Raspberry Pi/Nucleo, etc. Outline dimension: 227.7mm × 165.8mm × 0.647mm. Display size: 209.664mm × 157.248mm. Gray scale: 2-16 (1-4 bit). Full refresh time: 450ms. Total refresh power: 1.2W(typ.). Total standby power: 0.1W(typ.). Viewing angle: >170°.
