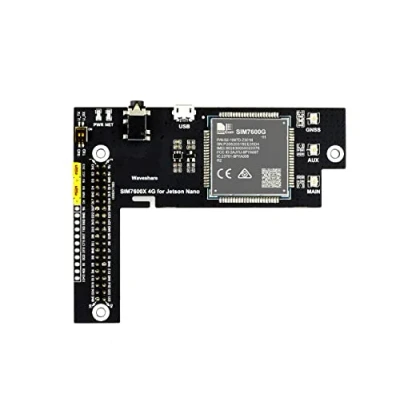

Waveshare 4G/3G/2G/GNSS Expansion Board for Jetson Nano Based on SIM7600G H Supports Global LTE CAT4 up to 150Mbps Downlink Data Transfer

Just attach it onto the Jetson Nano Developer Kit, easily enable functions like 4G high speed connection, wireless communication, remote video monitoring, making telephone call, sending SMS, global positioning, and so on. 40PIN GPIO extension header for connecting Jetson Nano. Breakout UART control pins, to connect with host boards like Arduino/STM32. SIM card slot, supports 1.8V/3V SIM card. Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set). Supports dial-up, telephone call, SMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc. Supports GPS, BeiDou, Glonass, LBS base station positioning. Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT. Onboard USB interface, to test AT Commands, get GPS positioning data, and so on. Onboard 3.5mm audio jack with earphone and mic support, for making telephone call. Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper.
