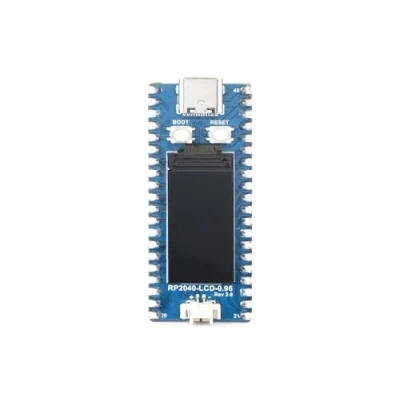

Waveshare Pico like Pre soldered MCU Board Based On Raspberry Pi RP2040 with 0.96inch IPS display LCD Support Most Add Modules

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom; Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz; 264KB of SRAM, and 2MB of on-board Flash memory with pre-soldered header USB-C connector, keeps it up to date, easier to use; 0.96inch 160×80 pixels 65K colorful IPS LCD display; Lithium batt recharge/discharge header, suitable for mobile devices Onboard DC-DC chip TPS63000, high efficiency DC-DC buck-boost chip, 1.8A current switch; Castellated module allows soldering direct to carrier boards (there should be dedicated cut-out for embedding the bottom components); USB 1.1 with device and host support Low-power sleep and dormant modes; Drag-and-drop programming using mass storage over USB; 26 × multi-function GPIO pins; 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels Accurate clock and timer on-chip; Temperature sensor; Accelerated floating-point libraries on-chip; 8 × Programmable I/O (PIO) state machines for custom peripheral support
