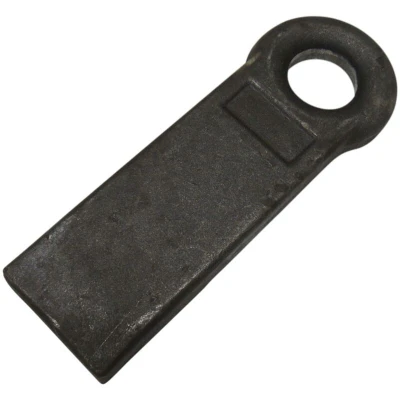

Weld On Towing Eye EN16T 12" (Straight 112 Ton 30.4CM Heavy Duty Mild Steel Trailer Ring)

General description Heavy Duty Straight Trailer Hitch Eye made from high tensile steel, designed for welding onto trailers. This product features an eye as the attachment point, ensuring a secure connection for towing applications. The EN16T version offers a higher grade of steel compared to mild steel, providing a greater maximum load capacity. Technical specifications Material: High Tensile Steel Product Codes and Dimensions: SFAG0100A: A (128 mm), B (31.5 mm), C (91.5 mm), D (110 mm), E (50.5 mm), Max Breaking Load (24 tons) SFAG0100B: A (305 mm), B (30 mm), C (88 mm), D (110.5 mm), E (50.5 mm), Max Breaking Load (24 tons) SFAG0100C: A (405 mm), B (30.5 mm), C (93 mm), D (113 mm), E (51 mm), Max Breaking Load (24 tons) SFAG0100D: A (460 mm), B (31.5 mm), C (91 mm), D (110.5 mm), E (50 mm), Max Breaking Load (24 tons) SFAG0101A: A (307 mm), B (30.5 mm), C (91 mm), D (112 mm), E (51 mm), Max Breaking Load (35 tons) SFAG0101B: A (407 mm), B (31.5 mm), C (91 mm), D (112.5 mm), E (50.5
