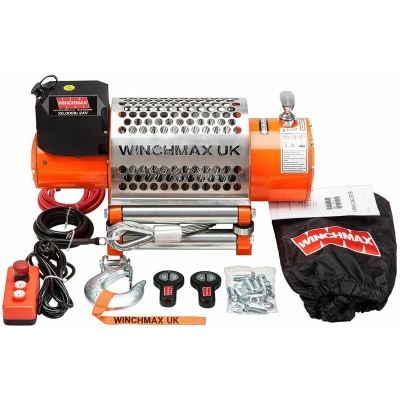

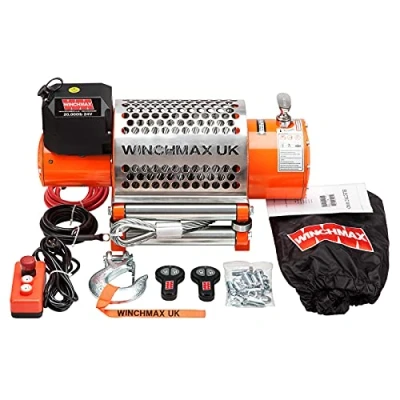

Winchmax 20,000lb (9,072kg) Original Orange 24v Electric Winch. 25m x 14mm Steel Rope. 1/2 inch Hook.

ManoMano

General description The 20,000lb (9,072kg) Original Orange Recovery 24V Electric Winch is designed for heavy-duty recovery tasks. It features a robust steel rope and comes with twin wireless remote controls for convenient operation. The winch is equipped with an integral roller fairlead, eliminating the need for a mounting plate. Technical specifications Single Line Rated Pull: 20,000lb (9,072kg) Motor: 24V 7.0HP/5.2KW, series wound Motor Current: 75-570A Gear Train: 4 stage planetary Gear Reduction Ratio: 544:1 Clutch: Sliding ring gear Braking Action: Automatic Drum Size: Diameter 89mm, Length 228.6mm Cable: 25m x 14mm galvanized steel wire rope Hook: Clevis hook 1/2 inch Fairlead: Heavy-duty 4 way roller fairlead Battery: Recommended 750CCA Minimum for Winching Winch Finish: Original Orange powder-coated Weight (Gross): 85kg (187lb) Overall Dimensions (LxWxH): 576 x 302 x 305mm Mounting Bolt Pattern: 10.00” x 4.50” (254 x 114.3mm) No Load Line Speed: 5.1m/min (16.73 ft/min) Usage

Amazon

The Original Orange Winch Ideal for Recovery Trucks and 4x4's up to 3.5 Tons, Suitable for all Offroad or Recovery Operations Latest Technology Twin Handset Long-range Wireless Remote Controls and Backup Control Lead. Comes with 25m x 14mm Galvanized Steel Wire Rope. 1/2 Inch grade 70 Forged Clevis Hook with Safety Catch and Hand Saver. Zinc Plated for Corrosion Resistance Includes a Strong Winchmax Branded Winch Cover to Protect from Water and Road Grime.
