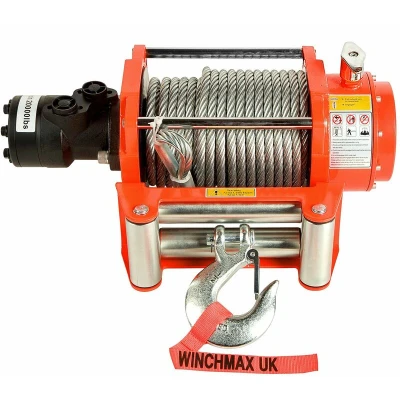

Winchmax 20,000lb (9,072kg) Original Orange Hydraulic Winch. 25m x 14mm Steel Rope. 1/2 Inch Hook.

General description The 20,000lb (9,072kg) Original Orange Hydraulic Winch is designed for heavy-duty applications, featuring a robust construction and high-performance capabilities. It comes equipped with a 25m x 14mm galvanized steel wire rope and a 1/2 inch grade 70 forged clevis hook, making it ideal for various lifting and pulling tasks. Technical specifications Single Line Rated Pull: 20,000lb (9,072kg) Motor: Hydraulic Gear Train: 3 Stage Planetary Gear Reduction Ratio: 32:1 Clutch: Sliding Ring Gear Braking Action: Automatic Drum Size: Diameter 88mm, Length 222mm Drum Finish: Black, painted Cable: 25m x 14mm galvanized steel wire rope Fairlead: 4-Way roller fairlead Flow: 50-60 l/min Pressure: 10.8Mpa (108 Bar) Winch Finish: Original Orange powder coated Weight (GW): 62kg (136lb) Overall Dimensions (LxWxH): 548 x 196 x 249mm Mounting Bolt Pattern: 10.00” ± 0.015” x 4.50” ± 0.010” (254 x 114.3mm) No Load Line Speed: 6.5m/min (21.3 ft/min) Usage This hydraulic winch is suitable

The Original Orange Winch: Designed for professional recovery and off-road operations Heavy-Duty Recovery Capacity: Suitable for Recovery Trucks and 4x4 vehicles up to 3.5 Tons, designed for all off-road or recovery operations Durable Fairlead Construction: Tough four roller fairlead with zinc plated rollers for enhanced durability and smooth rope operation Premium Steel Wire Rope System: Comes with 25m x 14mm galvanized steel wire rope, 1/2 inch Grade 70 forged clevis hook with safety catch and hand saver, zinc plated for corrosion resistance Maximum Impact Protection: Casing machined from billet steel for maximum impact protection and long-lasting durability Powerful Hydraulic Performance: 20,000lb (9,072kg) straight-line pull hydraulic winch with 12v controls for reliable operation Advanced Gearbox Technology: Ultra-tough three-stage gearbox with hardened steel gears and sliding ring gear free-wheel clutch for smooth operation
