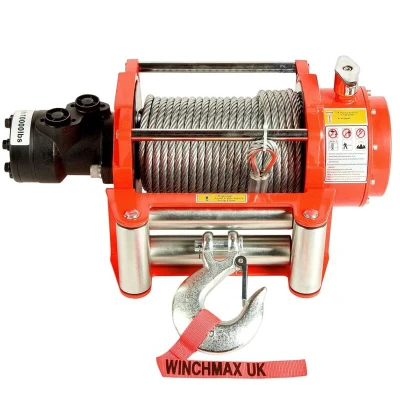

WINCHMAX 10,000lb (4,536kg) Original Orange Hydraulic Winch. 25m x 9.1mm Steel Rope 3/8 inch Hook.

General description The 10,000lb (4,536kg) Original Orange Hydraulic Winch is designed for heavy-duty applications, making it ideal for recovery trucks, trailers over 7.5T, as well as industrial, commercial, and agricultural use. This winch features a robust construction and high-performance capabilities to meet demanding tasks. Technical specifications Single Line Rated Pull: 10,000lb (4,536kg) Motor: Hydraulic Gear Train: 3 Stage Planetary Gear Reduction Ratio: 32:1 Clutch: Sliding Ring Gear Braking Action: Automatic Drum Size: Diameter 88mm, Length 222mm Drum Finish: Black, painted Cable: 25m x 9.1mm galvanized steel wire rope Hook: Clevis hook 3/8 inch, zinc plated Fairlead: 4-Way roller fairlead Flow: 50-60 L/min Pressure: 10.8Mpa (108 Bar) Winch Finish: Original Orange powder-coated Weight (GW): 56kg (123lb) Overall Dimensions (LxWxH): 548 x 196 x 249mm Mounting Bolt Pattern: 10.00” ± 0.015” x 4.50” ± 0.010” (254 x 114.3mm) No Load Line Speed: 6.5m/min (21.3 ft/min) Usage This
