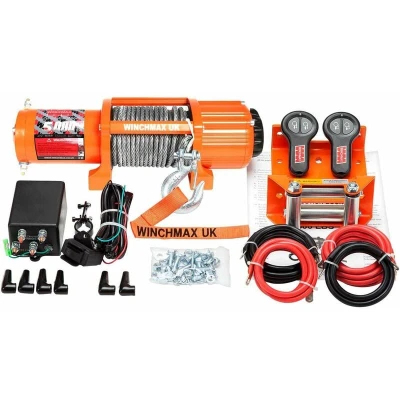

WINCHMAX 5,000lb (2,268kg) Original Orange 12v Winch. 15m x 5mm Steel Rope. 1/4 Inch Hook.

GENERAL DESCRIPTION The 5,000lb (2,268kg) Original Orange 12v Electric Winch is designed for use on boat trailers, ATVs, and light utility vehicles. It includes a mounting plate and features twin wireless remote controls. TECHNICAL SPECIFICATIONS Rated Pull: 5,000lb (2,268kg) Motor: 12v 1.5hp Permanent Magnetic Motor Control: Twin Wireless Remote and Handlebar-Mounted Rocker Switch Gear Train: 3 Stage Planetary Gear Reduction Ratio: 166:1 Clutch: Cam Activated Free Spool Braking Action: Automatic Full Load Hold Drum Finish: Steel – Painted Black Cable: 15.2m x 6.3mm Galvanized Steel Wire Rope Hook: Clevis Hook 1/4 Inch, Zinc plated Fairlead: 4 Way Roller Fairlead Recommended Battery: 12Ah Minimum for Winching Battery Leads: 10mm2 x 180cm Motor Leads: 10mm2 x 90cm Winch Finish: Original Orange powder-coated Weight: 16.2kg (35.7lb) Overall Dimensions: 390 x 120 x 117mm (LxWxH) Motor Current: 15-296A No Load Line Speed: 6.1m/min (20.0ft/min) OTHER INFORMATION Includes a strong WINCHMAX

Original Orange 12v Winch: The distinctive orange-colored 12v electric winch designed for reliable performance Powerful Motor: Super powerful 1.5hp 12v permanent magnetic electric motor for consistent pulling strength Convenient Control System: Power in/out rocker switch complete with 2.5m long connection and handlebar mounting bracket for easy operation Durable Steel Rope and Hook: Comes with 15.2m x 6.3mm Galvanized Steel Wire Rope and 1/4 Inch Clevis Hook, Zinc Plated for Corrosion Resistance Complete Cable Kit: Includes 2x 180cm battery power cables and 2x 90cm motor power cables for straightforward installation High Capacity Rating: 5,000lb (2,268kg) straight-line pull capacity suitable for boat trailers, ATVs and light utility vehicles Advanced Remote Control: Latest technology long-range wireless remote controls with twin handsets for flexible operation
