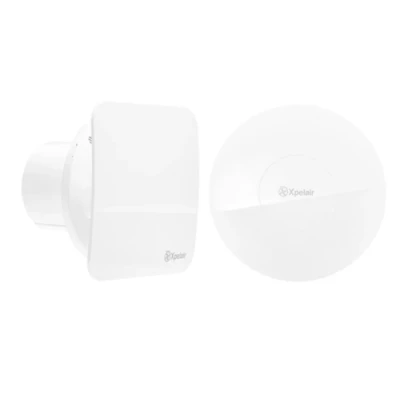

Xpelair Simply Silent Contour Axial Extract Fan with Pullcord

Plumbworld

Pull cord operated Make sure your bathroom is always clear of excess steam using this pull cord operated extractor fan. It’s easily turned on and off exactly when you need it to ensure your bathroom stays free from excess moisture. The pull cord is normally fitted next to the light switch or pull for total convenience. Interchangeable Fascia This package comes supplied with an interchangeable fascia in a square or rounded design, so you can ensure that your extractor fan not only performs to the highest of standard but also looks the part as well. Recessed Design Recessed fans can be installed through a wall, window or alternatively the ceiling giving you that extra bit of flexibility. Axial  Axial type fans cause gas to flow through in an axial direction which is parallel to the shaft where the blades rotate, making the flow axial at exit and entry. Axial fans are designed to create a pressure difference and force which produces a flow through the fan. IPX5 Rating This product have a rating of IPX5, meaning it is protected from water jets that are projected by a nozzle (6.3mm) from any angle.   Zone 1 Rated IP rating stands for 'Ingress Protection rating' and this helps us determine what bathroom electricals can go in particular bathroom zones. An IP (Ingress Protection) number or code is used here in the UK to specify the environmental protection of enclosures around electronic equipment. These ratings are determined by specific tests. These extractor fans can be fitted within Zone 1 as shown below. Use in a Cloakroom or Bathroom This type of fan is suitable for use in a cloakroom and a bathroom to give you an excellent flow rate.

Electrical World

2 speed options, 15 or 21 l/s, selected at installation for application6.3 or 7 watt power use AC motorSupplied with both circular and square baffles for preferred style finishPullcord operated with integral backdraught shutterSimply Silent Contour C4 range of 4 inch/100mm extractor fans are ideal for bathrooms, shower rooms, cloakrooms and toilets. They can be easily fitted in walls, ceilings and panels and have a choice of two speeds to select from at install to conform to Building Regulations Part F requirements.Technical SpecificationColour: WhiteMaterial: ABSNo. of Speeds: 2Power: 6.3 / 7 WDuct Size: 100mmFlow rate: 15 / 21 L/sFlow rate: 54 / 76 m³/hNoise: 15 / 29 dB(A)@3mSpecific Fan Power SFP: 0.42 / 0.33 W/L/sIP Rating: IPX4Motor Type: AC Pullcord: YesApprovals: CEDimensions (HxWxD): 18/20 x 18/20 x 13.1cmWeight: 1kgWarranty: 2 YearsTechnical Specification:Colour: White No. of Speeds: 1Dimensions: Length: 131mm x Height: 200mmWeight: 1KgWarranty: 2 Years

Amazon

2 speed options, 15 or 21 l/s, selected at installation for application 6.3 / 7.0 watt power consumption using AC motor Supplied with both circular and square baffles for preferred style finish Ghost Airmovement technology for near silent running IPX4 rated and a 2-year UK guarantee Power source type: corded electric Mounting type: wall mount or ceiling mount, Weight: 1.8518830008 pounds, Manufacturer: Xpelair
