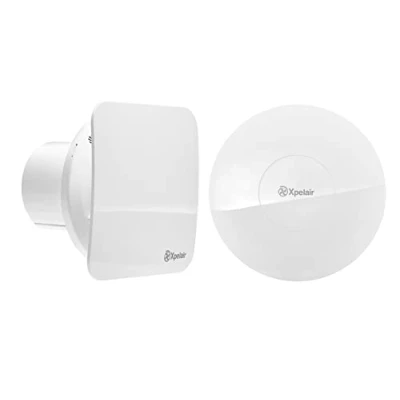

Xpelair Simply Silent Contour Axial Extract Fan with Humidistat and Timer

Plumbworld

The new and much improved range of bathroom accessories by Xpelair have hit the shelves. They’ve been purposefully designed to seamlessly blend with your bathroom décor and are ideal for assisting in humidity and odour removal while slowing the growth of mould in your ensuite or bathroom. They have been suitably called the Simply Silent range because, well, they are. The noise generated by an extractor fan generally comes from the movement of air or the motor itself. Xpelair have introduced us to Ghost Air Movement Technology. It uses the quietest motors and expertly designed parts for the best air flow to produce noise slightly quieter than rustling leaves. These extractor fans are put through rigorous testing and Xpelair are so confident in the quality that they provide a 2 year guarantee against any manufacturing faults.   Features and Benefits: The key to no noise is Xpelair’s Ghost Air Movement Technology. Silent motors are here. Stylish aesthetics for the most discreet installation in your bathroom. 2 available speeds (must be selected during install) 54l/s and 76l/s. Convenient installation for walls, ceilings, panels or windows. Timer and humidistat model.   Technical Data: Extract Performance: 54/76 m3/h Sound Pressure Level: 15/29 dBA@3m Electrical Power Rating: 6.3/7 W Specific Fan Power: 0.42/0.33 W/l/s Speeds: 2 IP Rating: IPX4 Motor Type: AC   Dimensions: Height: 180 mm Width: 180 mm Timer controlled Extractor fans with a built-in timer control means that the fan will operate with the bathroom light switch and then overrun for a set amount of time to continue removing moisture from the air. This is great for steamy bathrooms, allowing you to turn the light off but continue with extraction for a short time. Recessed Design Recessed fans can be installed through a wall, window or alternatively the ceiling giving you that extra bit of flexibility. Interchangeable Fascia This package comes supplied with an interchangeable fascia in a square or rounded design, so you can ensure that your extractor fan not only performs to the highest of standard but also looks the part as well. Axial  Axial type fans cause gas to flow through in an axial direction which is parallel to the shaft where the blades rotate, making the flow axial at exit and entry. Axial fans are designed to create a pressure difference and force which produces a flow through the fan. IPX4 Rating This product has a rating of IPX4 which means it is protected from water splashes from any angle.   Zone 1 Rated IP rating stands for 'Ingress Protection rating' and this helps us determine what bathroom electricals can go in particular bathroom zones. An IP (Ingress Protection) number or code is used here in the UK to specify the environmental protection of enclosures around electronic equipment. These ratings are determined by specific tests. These extractor fans can be fitted within Zone 1 as shown below. Use in a Cloakroom or Bathroom This type of fan is suitable for use in a cloakroom and a bathroom to give you an excellent flow rate.

Electrical World

2 speed options, 15 or 21 l/s, selected at installation for application6.3 / 7.0 watt power consumption using AC motorSupplied with both circular and square baffles for preferred style finishGhost Airmovement technology for near silent runningThe Simply Silent Contour range effectively eliminates humidity, condensation and odour to improve air quality in bathrooms, shower rooms, cloakrooms and toilets. They use advanced GhostAir Movement Technology to deliver near-silent running. Suitable for wall, ceiling, panel and window fitting. The C4SR range has two speeds selectable at install and is supplied withboth a circular and a square baffleto suit your preferred finish.Technical SpecificationColour: WhiteMaterial: ABSNo. of Speeds: 2Power: 6.3 / 7 WDuct Size: 100mmFlow rate: 15 / 21 L/sFlow rate: 54 / 76 m³/hNoise: 15 / 29 dB(A)@3mSpecific Fan Power SFP: 0.42 / 0.33 W/L/sIP Rating: IPX4Motor Type: AC Timer (0.5 - 30mins): YesHumidistat: YesApprovals: CEDimensions (HxWxD): 18/20 x 18/20 x 13.1cmWeight: 1kgWarranty: 2 YearsTechnical Specification:Colour: White No. of Speeds: 2Dimensions: Length: 131mm x Height: 200mmWeight: 1KgWarranty: 2 Years

ManoMano

GENERAL DESCRIPTION This extractor fan is designed for use in bathrooms and cloakrooms, effectively removing moisture and odors while minimizing mold growth. It features a built-in timer that allows the fan to continue operating for a set time after the light is turned off, ensuring effective moisture extraction. The fan is part of the Simply Silent range, known for its quiet operation thanks to Xpelair’s Ghost Air Movement Technology. TECHNICAL SPECIFICATIONS Extract Performance: 54/76 m3/h Sound Pressure Level: 15/29 dBA@3m Electrical Power Rating: 6.3/7 W Specific Fan Power: 0.42/0.33 W/l/s Speeds: 2 IP Rating: IPX4 Motor Type: AC Height: 180 mm Width: 180 mm Overall Depth: 136.5 mm Protruding Depth: 50 mm Fan Size: 100 mm (4 inches) Max Flowrate: 21 L/s Control Type: Humidistat & Timer Max Noise Level: 29 dB Bathroom Installation Zone: Zone 1 Fan Type: Axial Range Name: Simply Silent COMPATIBILITY AND ACCESSORIES The fan can be installed in walls, ceilings, panels, or windows. It

Amazon

Sleek, smooth facia can be easily be wiped clean for So Simple maintenance Two speeds - 15 litres per second and 21 litres per second - selectable at instalL Both Round and Square Facia Supplied Twist and Click fascia for So Simple installation and maintenance Suitable for wall, ceiling or panel fitting. 2 year manufacturers guarantee, Weight: 1.984160358 Pounds, Manufacturer: XPELAIR
