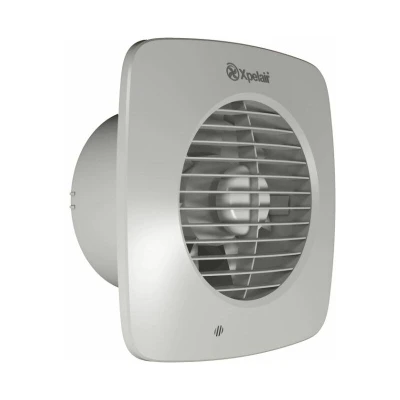

Xpelair Simply Silent Two Speed Axial Fan 150mm Square Grille Front with Humidistat/Timer
Description
Plumbworld
Each unit has two speeds available producing extraction rates of 227 or 259 cubic metres per hour. The required speed must be selected during installation. These rates produce noise levels of 39.9 and 41.6 decibels which is the equivalent of a quiet birdsong. Most of the noise associated with extractors comes from the air movement through it and the motor itself. To reduce this Xpelair have added a new feature called Ghost Air Movement Technology. It uses extra quiet motors and higher quality parts to reduce the sound. When you compare these statistics with other similarly sized extractors you understand where the name Simply Silent comes from.
Features and Benefits:
Ghost Air Movement Technology makes this one of the quietest fans of this size on the market.
Two speeds which produce extraction rates of 227 or 259 cubic metres per hour.
Sleek design for discreet installation in your bathroom.
Integrated overrun timer and humidistat built-in.
Suitable for fitting in a wall, panel, ceiling or a window.
Technical Data:
Extract Performance: 227/259 m3/h
Sound Pressure Level: 39.9/41.6 dBA@3m
Electrical Power Rating: 12.7/28.1 W
Specific Fan Power: 0.20/0.39 W/l/s
IPX (Ingress Protection) Rating: 4
Dimensions:
Height: 229 mm
Width: 229 mm
Humidistat & timer operated
These extractor fans are certainly the cleverest with the ability to operate using a timer or based on the humidity levels in the room. It is operated when humidity levels within the room get too high or when the light switch is used, with a timer continuing to run the extractor fan for a predetermined amount of time. Recessed DesignRecessed fans can be installed through a wall or the ceiling giving you that extra bit of flexibility. Axial
Axial type fans cause gas to flow through in an axial direction which is parallel to the shaft where the blades rotate, making the flow axial at exit and entry. Axial fans are designed to create a pressure difference and force which produces a flow through the fan. IPX4 Rating
This product has a rating of IPX4 which means it is protected from water splashes from any angle.
Zone 1 Rated
IP rating stands for 'Ingress Protection rating' and this helps us determine what bathroom electricals can go in particular bathroom zones. An IP (Ingress Protection) number or code is used here in the UK to specify the environmental protection of enclosures around electronic equipment. These ratings are determined by specific tests.
These extractor fans can be fitted within Zone 1 as shown below. Use in Kitchen (without cooker hood)
This type of fan is suitable for use in a kitchen without an extractor cooker hood, giving you a fantastic flow rate.
Description
(3)
Each unit has two speeds available producing extraction rates of 227 or 259 cubic metres per hour. The required speed must be selected during installation. These rates produce noise levels of 39.9 and 41.6 decibels which is the equivalent of a quiet birdsong. Most of the noise associated with extractors comes from the air movement through it and the motor itself. To reduce this Xpelair have added a new feature called Ghost Air Movement Technology. It uses extra quiet motors and higher quality parts to reduce the sound. When you compare these statistics with other similarly sized extractors you understand where the name Simply Silent comes from. Features and Benefits: Ghost Air Movement Technology makes this one of the quietest fans of this size on the market. Two speeds which produce extraction rates of 227 or 259 cubic metres per hour. Sleek design for discreet installation in your bathroom. Integrated overrun timer and humidistat built-in. Suitable for fitting in a wall, panel, ceiling or a window. Technical Data: Extract Performance: 227/259 m3/h Sound Pressure Level: 39.9/41.6 dBA@3m Electrical Power Rating: 12.7/28.1 W Specific Fan Power: 0.20/0.39 W/l/s IPX (Ingress Protection) Rating: 4 Dimensions: Height: 229 mm Width: 229 mm Humidistat & timer operated These extractor fans are certainly the cleverest with the ability to operate using a timer or based on the humidity levels in the room. It is operated when humidity levels within the room get too high or when the light switch is used, with a timer continuing to run the extractor fan for a predetermined amount of time. Recessed DesignRecessed fans can be installed through a wall or the ceiling giving you that extra bit of flexibility. Axial Axial type fans cause gas to flow through in an axial direction which is parallel to the shaft where the blades rotate, making the flow axial at exit and entry. Axial fans are designed to create a pressure difference and force which produces a flow through the fan. IPX4 Rating This product has a rating of IPX4 which means it is protected from water splashes from any angle. Zone 1 Rated IP rating stands for 'Ingress Protection rating' and this helps us determine what bathroom electricals can go in particular bathroom zones. An IP (Ingress Protection) number or code is used here in the UK to specify the environmental protection of enclosures around electronic equipment. These ratings are determined by specific tests. These extractor fans can be fitted within Zone 1 as shown below. Use in Kitchen (without cooker hood) This type of fan is suitable for use in a kitchen without an extractor cooker hood, giving you a fantastic flow rate.
Electrical WorldOperated by a remote switch, usually lighting circuit with no overrun2 speeds, selectable at installComplies with Building Regulations Part F for kitchensSo Simple installation features including large cable accessComes complete with air-operated backdraught shuttersGreat for replacements or new installationsThe Simply Silent DX150 intermittent extract fans are designed for those looking for something conventional with a modern twist. The fan, suitable for wall and ceiling fitting, controls humidity, odours and mould growth effectively in kitchens, utility rooms, larger bathrooms and individual offices. It uses advanced GhostAir Movement Technology to deliver near-silent running.Technical SpecificationColour: WhiteExtract performance: 214/241 l/sExtract performance: 60/67 m³/hElectrical power rating: 15/22.6WSpecific fan power: 0.25/0.34 W/l/sSound pressure level: 39/42 dBA@3mDimensions (HxWxD): 22.9 x 22.9 x 13cmIP Rating: IPX4Warranty: 2 YearsTechnical Specification:Colour: White No. of Speeds: 2Dimensions: Length: 130mm x Height: 229mmWarranty: 2 Years
AmazonOperated by a remote switch, with a timer overrun and integral humidistat 2 speeds, selectable at install Complies with Building Regulations Part F for kitchens So Simple installation features including large cable access Comes complete with air-operated backdraught shutters, Weight: 2.2 pounds, Manufacturer: Xpelair
