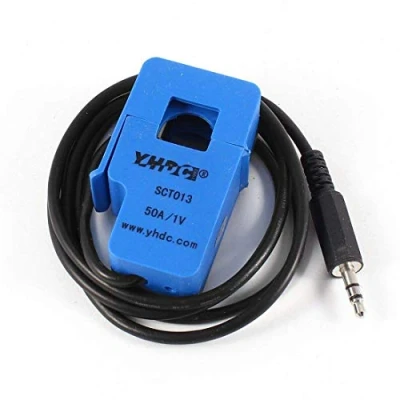

YHDC Split Core Current Transformer Non invasive SCT 013 050 50A /1V±1%

SCT013-050 Split Core Current Transformer Rated input: 50A Max. Input:70A Rated output: 1V Accuracy: ±1 % Flame resistance: UL94-V0 Standard: GB1208-2006 Work voltage:720V Work temperature: -25 ℃ ~ + 70 ℃ Storage temperature: -30℃～+90℃ Frequency range: 50Hz-1KHz Dielectric strength: AC 3500V/1min Linearity: ≤0.2 % Max sampling resistance: 10Ω Weight: 50g Openning size 13mm*13mm,1m leading wire, standard Φ3.5 three-core plug output. Have two kinds of output type: Current output type and voltage output type. Purpose： Used for current measurement, monitor and protection for AC motor,lighting equipment, air compressor etc
