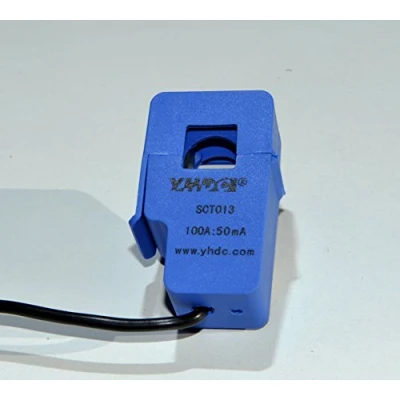

YHDC Split Core Current Transformer Non invasive Sensor SCT013 000 100A/50mA
|
£ 15.50 | To Shop |
Description
Amazon
Split core current transformer>Model: SCT013-000Rated input: 100A Max. Input: 120A Rated output: 50mA Accuracy: ±1 %Linearity: ≤0.2 % @@@cw64yfSlKTXfrpkd8nbIGXsDRjETSNxt@@@ material: ferrite Flame resistance: UL94-V0 Standard: GB1208-2006 Work voltage:720V Work temperature: -25 ℃ ~ + 70 ℃ Storage temperature: -30℃～+90℃ Frequency range: 50Hz-1KHz Dielectric strength: AC 3500V/1min Max sampling resistance: 10Ω Weight: 50g Opening size 13mm * 13mm, compatible to foreign products, leading wire 1 metre, standard Φ3.5 three core plug output, current & voltage two types of output. (Patent No. ZL 2015 3 0060067.X
Compare webshops (1)
Description
(1)
Split core current transformer>Model: SCT013-000Rated input: 100A Max. Input: 120A Rated output: 50mA Accuracy: ±1 %Linearity: ≤0.2 % @@@cw64yfSlKTXfrpkd8nbIGXsDRjETSNxt@@@ material: ferrite Flame resistance: UL94-V0 Standard: GB1208-2006 Work voltage:720V Work temperature: -25 ℃ ~ + 70 ℃ Storage temperature: -30℃～+90℃ Frequency range: 50Hz-1KHz Dielectric strength: AC 3500V/1min Max sampling resistance: 10Ω Weight: 50g Opening size 13mm * 13mm, compatible to foreign products, leading wire 1 metre, standard Φ3.5 three core plug output, current & voltage two types of output. (Patent No. ZL 2015 3 0060067.X
