30MM Wire Rope Grips X2 Bulldog Clamp Cable Galvanised Commercial DIN741

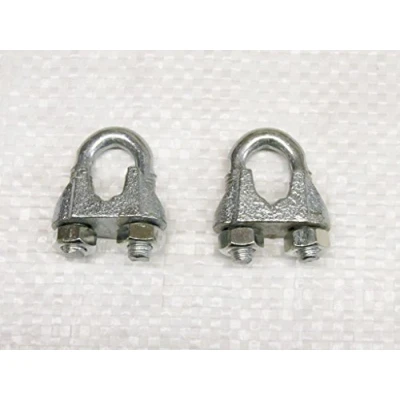

General description 30MM Galvanised Wire Rope Grips are designed for secure and reliable fastening of wire ropes, suitable for various applications including boating, yacht rigging, and public areas. This product includes two grips, each crafted to provide excellent corrosion resistance due to its galvanised finish. Technical specifications Product Code: SFCOMG30 Product Weight: 1.15 KG Dimensions: A (MM): 56 B (MM): 31 C (MM): 35 D (MM): 16 E (MM): 111 F (MM): 41 G (MM): 74 Installation Prior to fitting, grease the threads on the nuts and bolts. Ensure spacing between grips is at least 6 times the diameter of the rope. Orient the grip correctly, placing the 'u' bolt on the unloaded end of the rope. Tighten each nut evenly and in turn to achieve the recommended torque settings. After installation, leave unused for 24 hours and re-check torque settings, re-tightening if necessary. After the first application of load, re-check torque settings and re-tighten if necessary. Periodically
