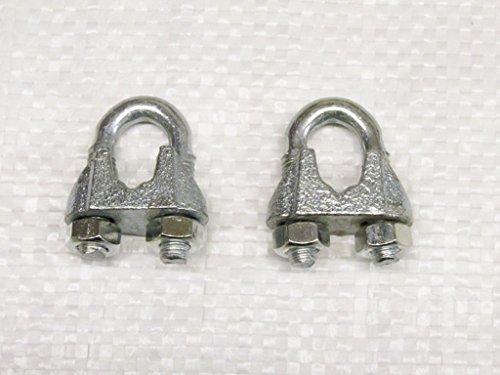

Wire Rope Grips 26MM x2 Bulldog Clamp Cable Galvanised Commercial DIN741

General description Our 26MM Wire Rope Grips are designed for commercial use, featuring a robust galvanised finish that provides excellent corrosion resistance. These grips are ideal for creating loops in wire rope assemblies or for temporary joins, making them suitable for both marine rigging and various land applications. Technical specifications Product Code: SFCOMG25 Product Weight: 0.78 KG Size: 26MM Material: Mild steel with galvanised coating Dimensions: A (MM): 42 B (MM): 27 C (MM): 36 D (MM): 13 E (MM): 87 F (MM): 36 G (MM): 65 Installation Prior to fitting, grease the threads on the nuts and bolts. Ensure spacing between grips is at least 6 times the diameter of the rope. Orient the grip correctly, placing the 'u' bolt on the unloaded end of the rope. Tighten each nut evenly and in turn to achieve recommended torque settings. Leave unused for 24 hours and re-check torque settings, re-tightening if necessary. After the first application of load, re-check torque settings and
