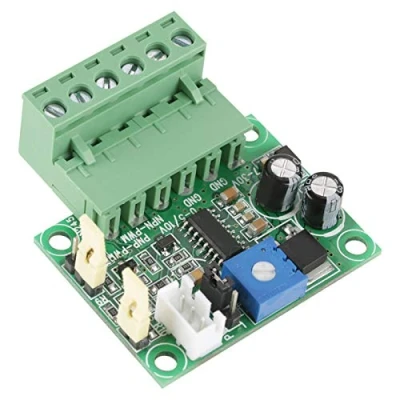

Analog Voltage to PWM Signal Converter 0 5V/0 10V Input 100% 2KHZ 20KHZ Module for Motor Speed Control Interface Circuit

Wide Application: This module is widely used for PWM motor speed control interface circuit, instrumentation AD interface conversion, and other applications that need convert voltage to PWM signal. Two Kinds of PWM Signal: There are two kinds of PWM signal, PNP-PWM output and NPN-PWM output. The PNP-PWM output is only 5V level, NPN-PWM output is 5V and 24V level. Voltage to PWM Converter Module: This module can convert 0-5V or 0-10V analog input voltage into 0-100% PWM signal. Setable Output Frequency: The default function of this module is converting 0-10V into 0-100% 2KHZ PWM signal, but the output frequency can be set by adjusting potentiometer as needed. PWM Frequency Range: The PWM frequency range is 2KHZ-20KHZ, maximum is 20KHZ, default minimum is 2KHZ.
