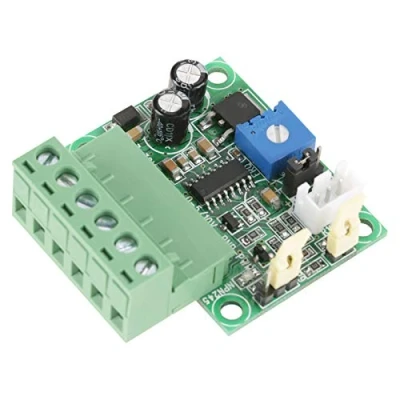

Voltage to PWM Signal Module,0 5V/0 10V Analog Input 0 100% Signal,Converter Module

2 KINDS OF PWM SIGNAL---There are two kinds of PWM signal, PNP-PWM output and NPN-PWM output;the PNP-PWM output is only 5V level, NPN-PWM output is 5V and 24V level. NPN-PWM output supports common-cathode connection and common-anode connection, 5V and 24V two levels. When output 24V level, it need 24V power supply 2KHZ-20KHZ---Output PWM frequency is adjustable within 2KHZ-20KHZ; there are total 11 positions, respectively corresponding to 2KHZ, 4KHZ, 6KHZ, 8KHZ maximum 20KHZ, default frequency is 2KHZ. For PNP-PWM output, the level can only be 5V. Can only use common-cathode connection, and connect to MCU, etc PWM FREQUENCY RANGE---This converter module can convert 0-5V or 0-10V analog input voltage into 0-100% PWM signal. PWM frequency range is 2KHZ-20KHZ, maximum is 20KHZ, default minimum is 2KHZ PWM FREQUENCY RANGE---This converter module can convert 0-5V or 0-10V analog input voltage into 0-100% PWM signal. PWM frequency range is 2KHZ-20KHZ, maximum is 20KHZ, default minimum is 2KHZ DEFAULT FUNCTION---Default function is converting 0-10V into 0-100% 2KHZ PWM signal; output frequency can be set by adjusting potentiometer as needed. PWM and voltage can be direct ratio(positive phase output) or inverse ratio (negative phase output)
