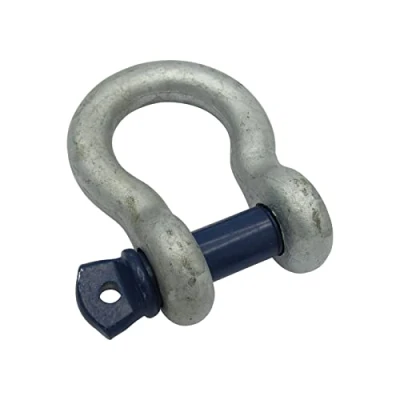

Bow Shackle with Screw Pin 6.5 Ton (Lifting Towing Galvanised Steel 6500KG)

ManoMano

Specifications: Product Code: SFUSSPB6.5 Product Weight: 1.65kg Bow Shackles With Screw Pins US Federal Specification RR-C-27IDIV Manufactured: Drop Forged Body Finish: Hot Dipped Galvanised, Pin: Painted Finish: Galvanised Safety Factor: 5:1 Safe Working Load - 6.5 Tonnes Conforms To: BS EN 13889: 2003 + A1: 2008 PRODUCT CODE SWL (Ton) A(MM) B(MM) C(MM) D(MM) E(MM) F(MM) G(MM) SFUSSPB0.33 0.33 5.5 6 9 15 21 16 8 SFUSSPB0.5 0.5 6 8 12 18 27 19 10 SFUSSPB0.75 0.75 8 9 12.5 21 31.5 20 11 SFUSSPB1 1 10 11 16 25 35 26 13 SFUSSPB1.5 1.5 11 12.5 18 27 41 29 14.5 SFUSSPB2 2 13 16 22 32 47 33 16 SFUSSPB3.25 3.25 16 19 27 39 63 42 21 SFUSSPB4.75 4.75 19 22 32 47 69 50 25 SFUSSPB6.5 6.5 22 25 39 52 85 57 31 SFUSSPB8.5 8.5 25 28 44.5 58 93 67 35.5 SFUSSPB9.5 9.5 29 32 45 67 107 72 36 SFUSSPB12 12 32 35 53 75 119 80 40 SFUSSPB13.5 13.5 35 37.5 60 83 134 93 40.5 SFUSSPB17 17 39 42 63 91 150 75 37.5 SFUSSPB25 25 44 50 74 107 175 125 55 SFUSSPB35 35 51 55 85 123 195 145 69 SFUSSPB55 55 64 69 105 150

Amazon

Manufactured: Drop Forged Finish: Galvanised Safe Working Load - 6.5 Tonnes Safety Factor: 5:1 A=22MM, B=25MM, C=37MM, D=52MM, E=83MM, F=57MM, G=31MM, Manufacturer: SecureFix Direct
