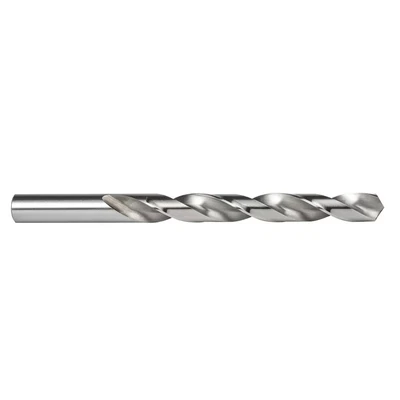

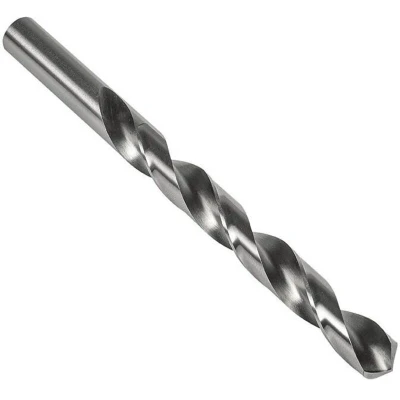

Dormer A100 15/64" HSS Straight Shank Jobber Drills

ManoMano

General description This high-speed steel (HSS) drill bit is designed for precise drilling in steel and cast iron. Dormer A100 series general purpose HSS jobber drills are suitable for use in the majority of general purpose engineering applications. They have good self-centring capability on a wide range of materials and are suitable for both hand and machine use. The drill bit features a 118° point angle and a straight cutting edge for efficient performance, and it is coated with a cross-grain finish for durability and smooth operation. Technical specifications Material: High-Speed Steel (HSS) Type: DIN 338, Type N Tip diameter: 15/64 in Point angle: 118° Cutting edge: Straight Profile: Cross-grain finish from Ø 3.0 mm Shank: Cylindrical Cutting direction: Right-hand Nominal tolerance: h8 Model: A100 Overall length: 93 mm Working length: 57 mm Depth of drilling: 4xD Compatibility and accessories Compatible with standard drill chucks Suitable for drill machines for steel and cast iron

Power Tools Direct

Dormer A100 series general purpose HSS jobber drills are suitable for use in the majority of general purpose engineering applications. They have good self-centring capability on a wide range of materials and are suitable for both hand and machine use. DIN338RNBS328ISO235Tip diameter: 15/64in.Working length: 57mm.Overall length: 93mm.PTDDORA1001564

Amazon

High Speed Steel (HSS) provides good hot hardness when drilling 118 degree conventional point provides easy re-grinding Steam oxide finish reduces built-up-edge and helps lubricity Patented Silver ring provides clear diameter marking For use on machines or hand held applications
