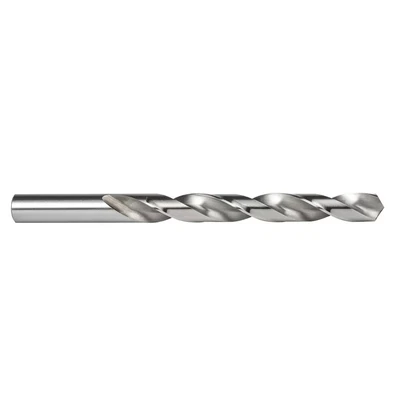

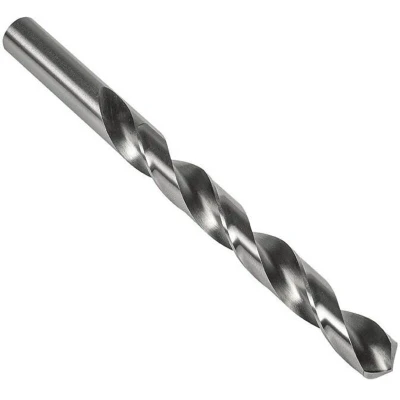

Dormer A100 21/64" HSS Straight Shank Jobber Drills

General description This general-purpose HSS drill bit from the Dormer A100 series is designed for a wide range of engineering applications. It offers good self-centering capabilities on various materials and can be used with both hand tools and machines. The drill is suitable for standard drilling tasks in steel and cast iron, providing reliable performance and precision. Technical specifications Tip diameter: 21/64 inch (8.33 mm) Working length: 75 mm Overall length: 117 mm Material: High-Speed Steel (HSS) Maximum tip angle: 118° Cutting profile: Right-hand cut Cross-section diameter: 3.0 mm Model: A100 Perforation depth: 4 times the diameter (4xD) Tolerance: Nominal diameter h8 Compatibility and accessories Suitable for use in various drilling machines and hand tools Compatible with standard drill chucks and holders Installation Insert the drill into a compatible drill chuck or holder Ensure the drill is securely tightened before use Use appropriate speed and feed rates based on
