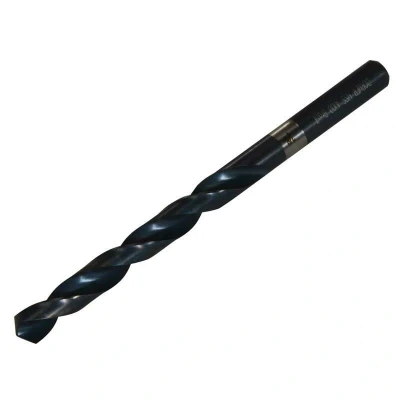

Dormer A100 3/8" HSS Straight Shank Jobber Drills

General description This Dormer A100 series general-purpose HSS jobber drill is designed for a wide range of engineering applications. Made from high-speed steel (HSS), it features a cylindrical shank and is suitable for both hand and machine use. The drill has a self-centering capability, making it ideal for precise drilling in steel and cast iron. Technical specifications Diameter: 3/8 inch (9.52 mm) Total length: 133 mm Cutting length: 87 mm Shank type: Cylindrical Material: High-Speed Steel (HSS) Point angle: 118° Standard: DIN 338 Tolerance: h8 Number of flutes: Standard spiral Depth of drilling: 4xD Quality: Ground profile Compatibility and accessories Compatible with standard drill chucks and drill presses Sold in packs of 10 pieces Installation Insert the drill into a compatible drill chuck, ensuring a secure fit Adjust the drill speed according to the material and drill specifications Usage Use for drilling in steel and cast iron Suitable for normal drilling tasks in

Dormer A100 series general purpose HSS jobber drills are suitable for use in the majority of general purpose engineering applications. They have good self-centring capability on a wide range of materials and are suitable for both hand and machine use. DIN338RNBS328ISO235Tip diameter: 3/8in.Working length: 87mm.Overall length: 133mm.PTDDORA10038
