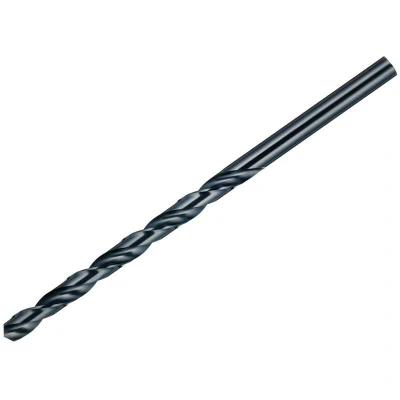

Dormer A110 HSS Long Series Drill 12.00mm OL205mm WL134mm DORLS1200

General description The Dormer A110 Metric Long Series Drill Bits are versatile long-reach drills designed for drilling deep holes in various materials. Ideal for both hand and machine use, these high-speed steel (HSS) drills are perfect for deep drilling applications, including through holes and drilling bushings in steel and cast iron. Technical specifications Tip diameter: 12.0 mm Working length: 134 mm Overall length: 205 mm Material: HSS (High-Speed Steel) Tip angle: 118° Depth of drilling: 6 times the diameter (6xD) Shank type: Cylindrical Standard: DIN 340RN/BS328/ISO 494 Coating: Vapor-treated Cutting profile: Cross-ground with straight cut Cutting direction: Right-hand Maximum feed in steel (up to 800 N): 0.15 mm/rev Tolerance: h8 Compatibility and accessories Compatible with standard drill chucks and machine tools Suitable for drilling in steel, cast iron, and other similar materials Installation Insert the drill into a compatible drill chuck or machine spindle Ensure the
