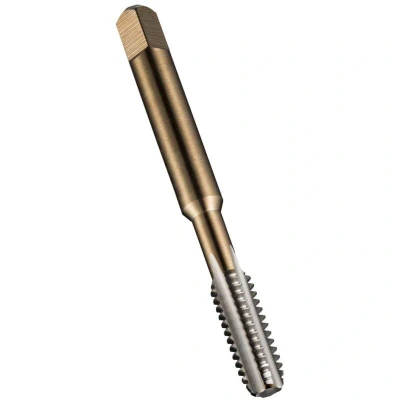

Dormer E500 hss Coarse Tap Straight Flute 10mm Bottoming DORE500100B

Dormer E500 straight flute taps are the only type of taps that can be used by hand but they may also be used in a machine if required. Extremely versatile can tap through or blind holes in most materials. When tapping blind holes straight flute taps should be used in sets. The three taps which form a set are known by more than one name. 1. Taper or First tap2. Second or Intermediate tap3. Bottoming third or plug tap. Metric coarse straight flute taps. Tolerance: Class 2 for 6H FitSurface treatment: BrightMaterial: HSS High Speed SteelChamfer No: 1 2 and 3 Serial no 4 and 5Flute Geometry: Straight Flutes ISO529Size 10.0mm x 1.5 bottomingPTDDORE500100B

General description Dormer E500 straight flute taps are designed for versatility, allowing for tapping through or blind holes in various materials. They are the only type of taps that can be operated by hand, but can also be used in machines if necessary. When tapping blind holes, it is recommended to use straight flute taps in sets, which include a taper (first tap), intermediate (second tap), and bottoming (third or plug tap). Technical specifications Size: 10.0mm x 1.5 Tolerance: Class 2 for 6H Fit Material: HSS (High Speed Steel) Surface treatment: Bright Chamfer Numbers: 1, 2, and 3; Serial Numbers: 4 and 5 Flute Geometry: Straight Flutes ISO529
