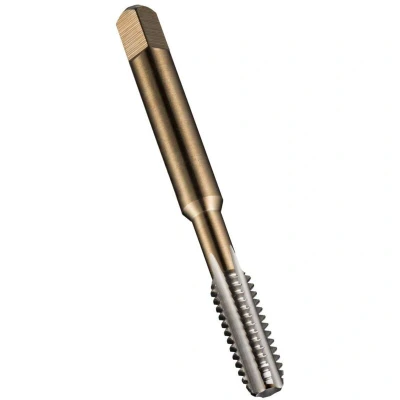

Dormer E500 HSS Coarse Tap Straight Flute 16mm Bottoming DORE500160B

General description This Dormer E500 HSS Coarse Tap is a high-quality machine-cut right-hand threaded tap made of High-Speed Steel (HSS), designed for precise threading in metalworking applications. It features a straight design suitable for creating internal threads in various materials, including steel and carbon steel. Technical specifications Size: 16.0 x 2.0 Thread type: ISO metric M16 with 2.00mm pitch Thread length: 24mm Shaft diameter: 12.5mm Shaft type: Cylindrical with a 10mm square drive Overall length: approximately 102mm Tolerance: Class 2 for 6H Fit Surface treatment: Bright Flute Geometry: Straight Flutes ISO529 Compatibility and accessories Compatible with standard machine taps for internal threading Requires a compatible tap wrench or machine holder for operation Installation Insert the tap into a suitable tap wrench or machine holder Ensure the tap is aligned properly with the hole to be threaded Use appropriate cutting fluid to reduce heat and wear during threading

Dormer E500 straight flute taps are the only type of taps that can be used by hand but they may also be used in a machine if required. Extremely versatile can tap through or blind holes in most materials. When tapping blind holes straight flute taps should be used in sets. The three taps which form a set are known by more than one name. 1. Taper or First tap2. Second or Intermediate tap3. Bottoming third or plug tap. Metric coarse straight flute taps. Tolerance: Class 2 for 6H FitSurface treatment: BrightMaterial: HSS High Speed SteelChamfer No: 1 2 and 3 Serial no 4 and 5Flute Geometry: Straight Flutes ISO529Size 16.0 x 2.0 bottomingPTDDORE500160B
