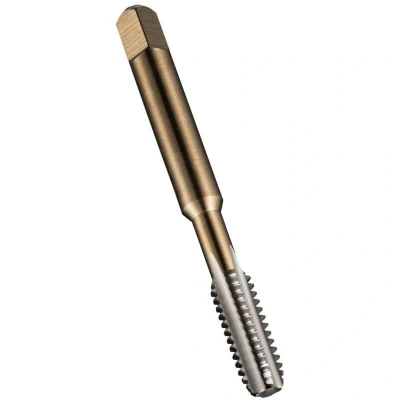

Dormer E500 HSS Coarse Tap Straight Flute 16mm Second DORE500160S

General description This Dormer E500 HSS Coarse Tap is designed for threading applications, featuring a right-hand cutting direction. Made from high-speed steel (HSS), it is suitable for creating internal threads in various materials and complies with ISO 529 standards. This versatile tap can be used by hand or in a machine, making it ideal for both through and blind holes. Technical specifications Material: High-Speed Steel (HSS) Standards: ISO 529 Cutting direction: Right-hand Thread length: 24mm Shank diameter: 12.5mm Thread size: M16 Thread pitch: 2mm Hole diameter for threading: 14mm Tolerance: Class 2 for 6H Fit Surface treatment: Bright Chamfer: No 1, 2, and 3, Serial no 4 and 5 Flute Geometry: Straight Flutes ISO529 Compatibility and accessories Suitable for creating M16 internal threads Compatible with standard tapping tools and machines Installation Insert the tap into a compatible tapping machine or handle Ensure the workpiece is properly secured and aligned Use appropriate

Dormer E500 straight flute taps are the only type of taps that can be used by hand but they may also be used in a machine if required. Extremely versatile can tap through or blind holes in most materials. When tapping blind holes straight flute taps should be used in sets. The three taps which form a set are known by more than one name. 1. Taper or First tap2. Second or Intermediate tap3. Bottoming third or plug tap. Metric coarse straight flute taps. Tolerance: Class 2 for 6H FitSurface treatment: BrightMaterial: HSS High Speed SteelChamfer No: 1 2 and 3 Serial no 4 and 5Flute Geometry: Straight Flutes ISO529Size 16.0mm x 2.0 secondPTDDORE500160S
