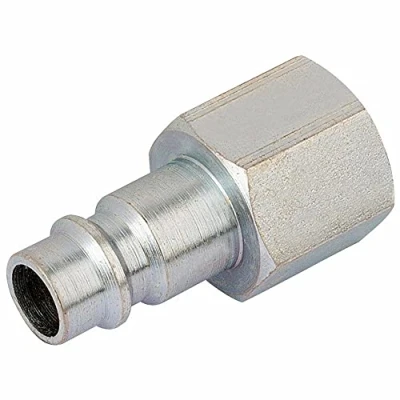

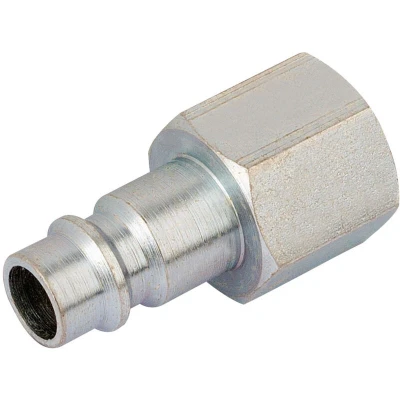

Draper 1/4" BSP Female Nut PCL Euro Coupling Adaptor (Sold Loose)

ManoMano

General description This heavy-duty high-flow connector is designed for demanding applications. It has been tested to withstand over 1 million cycles, ensuring durability and reliability. Made from hard-wearing steel and zinc passivated to significantly enhance corrosion resistance, it is suitable for demanding environments and long-term use. Sold loose for versatile installation. Technical specifications Flow capacity at 6 bar inlet with 0.5 bar pressure drop: 78 cfm (2200 L/min) Maximum working pressure: 500 psi (35 bar) Test pressure: 725 psi (50 bar) Maximum burst pressure: 2030 psi (140 bar) Temperature range: -40°C to 100°C Nominal flow diameter: 7.4 mm Compatibility and accessories Compatible with most popular European adaptor profiles including Cejn and Rectus Sold loose, allowing for flexible use and installation Installation Connect the fitting to compatible hoses or equipment following standard procedures for high-pressure fittings Ensure proper sealing and secure

Amazon

Size: 1/4" Flow capacity at 6 bar inlet Max. working pressure 500psi Test pressure 725psi Max. burst pressure 2030psi

Electrical World

For heavy duty high flow applications
