Draper Floor Press, 12 Tonne

ManoMano

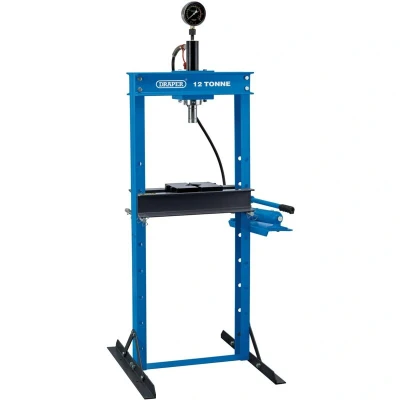

General description This is a robust hydraulic floor press with a capacity of 12 tonnes, designed for heavy-duty pressing tasks. It features a sliding ram and adjustable table heights for versatile use. Technical specifications Capacity: 12 tonnes Frame depth: 80mm Frame height: 1350mm Frame width: 630mm Maximum table to ram height: 917mm Minimum table to ram height: 77mm Overall height: 1655mm Ram stroke: 180mm Ram type: Sliding Working table width: 455mm Weight: 78.5kg Compatibility and accessories Includes two flat V-shaped blocks for various pressing applications Installation Simple setup requiring a stable, level surface Usage Adjust the table height to suit your project needs from 224mm to 1064mm Use the glycerine liquid filled gauge for accurate pressure monitoring Operate the sliding ram for precise pressing actions Other information Equipped with a safety valve to prevent overloading Anti-kink coil fitted to each end of the flexible hose for increased durability The glycerine

Electrical World

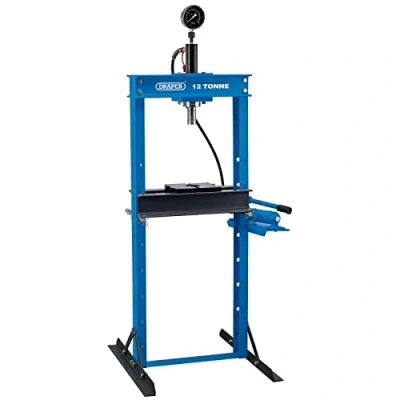

Robust hydraulic 12 tonne floor press with sliding ram. There are eight adjustable table heights: 224, 344, 464, 584, 704, 824, 944 and 1064mm. The glycerine liquid filled gauge provides increased accuracy and prolonged service life. An anti-kink coil is fitted to each end of the flexible hose for increased protection. Fitted with a safety valve to pretend the press from overloading. Complete with two flat V-shaped blocks. Fully tested and certified for safe, reliable operation.

Amazon

Robust hydraulic 12 tonne floor press with sliding ram Eight adjustable table heights: 224, 344, 464, 584, 704, 824, 944 and 1064mm Glycerine liquid filled gauge provides increased accuracy and prolonged service life An anti-kink coil is fitted to each end of the flexible hose for increased protection. Fitted with a safety valve to pretend the press from Draper 12 months parts and labour warranty.
