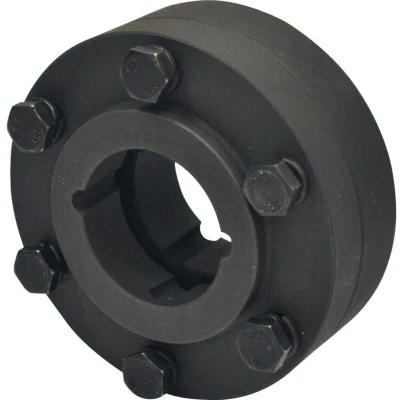

Dunlop RM30FF Rigid Coupling Complete Taper Bore 3030

ManoMano

Dunlop BTL: RM30FF Rigid Coupling Complete Tape Boe 3030 Rigid Coupling Elements Rigid Couplings with Taper Bore bushes provide users with a quick and easy fixing of rigidly connecting shafts with the convience of a wide selection of shaft sizes of the Taper Bore bushes. The male flange can have the bush installed from the Hub side (H) or from Flange side (F). The female always has the bush fitting F which gives two possible coupling assembly types HF and FF. When using on horizontal shafts, select the most convenient assembly. When used on vertical shafts only use the FF type. HF style (Hub & Female Flange) FF style (Hub & Female Flange) MPN: RM30FF-3020DUN EAN: 5059161196782 RM30FF Rigid Coupling Complete Tape Boe 3030 Attributes: Approx Total Length: 109mm Coupling Elements: Rigid Coupling Complete Flange Type: FF Stylemm MFR Part No.: RM30FF(3020) Maximum Bore Size: 75mm Taper Bush Size: 3020 To Suit Coupling: RM30

Zoro Tools

Rigid Coupling Elements Rigid Couplings with Taper Bore bushes provide users with a quick and easy fixing of rigidly connecting shafts with the convience of a wide selection of shaft sizes of the Taper Bore bushes. The male flange can have the bush installed from the Hub side (H) or from Flange side (F). The female always has the bush fitting F which gives two possible coupling assembly types HF and FF. When using on horizontal shafts, select the most convenient assembly. When used on vertical shafts only use the FF type. HF style (Hub & Female Flange) FF style (Hub & Female Flange)
