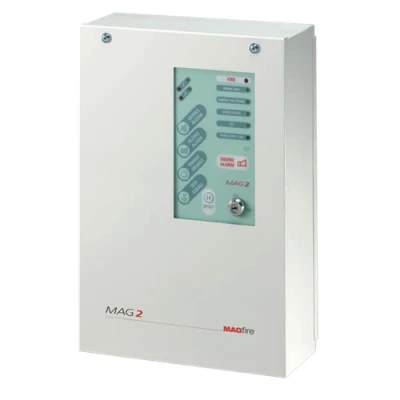

ESP 2 Zone Fire Panel Metal Casing

Electrical World

2 Zone Metal Conventional Fire Pane2 programmable zonesActive end of line monitoring and head removal30 fire detectors per zoneUnlimited number of call points per zoneIntegral sound alarm button'Class change' facilityEnable/disable security keyOne man walk test facilityVolt free fire change over relayVolt free fault change over relayIndividual sounder circuit fault IDIndividual zone/sounder isolateBS5839 and EN54 P2/4 compliantCE certifiedRequires only 1x12v batteryMetal casingTechnical SpecificationInputsMax Detectors Per Zone: 30Thresholds for Zone Conditions: 0 - 2 mA (Fault condition), 2 - 6 mA (Normal condition), 6 - 110 mA (Fire condition), 110 mA - Short (Fault condition)PowerMains Fail Consumption: 50mAMains Supply: 230 VAC ± 10%Standby Supply: ­­1 x 7ah 12V S.L.A. BatteryPower Availability: 0.7 ampsOutputsSounder 1: 24V (max 300mA fused)Sounder 2: 24V (max 300mA fused)Fault/Fire Relay: Volt free 500mA @ 24V (max load)Auxiliary Output: 24VDC (300mA fused)EnvironmentWorking Temperature: 0 to 40ºCStorage Temperature: -20 to 60ºCHumidity: 0 - 95%Dimensions MAG2P: 340 x 290 x 100mmDimensions MAG2: 200 x 290 x 80mmWeight: MAG2P - 2.1Kg MAG2 - 2.7KgTechnical Specification:Inputs: Max Detectors Per Zone: 30Thresholds for Zone Conditions: 0 - 2 mA (Fault condition) 2 - 6 mA (Normal condition) 6 - 110 mA (Fire condition) 110 mA - Short (Fault condition)Power: Mains Fail Consumption : 50mAMains Supply: 230 VAC ± 10%Standby Supply: ­­1 x 7ah 12V S.L.A. BatteryPower Availability: 0.7 ampsOutputs: Sounder 1: 24V (max 300mA fused)Sounder 2: 24V (max 300mA fused)Fault/Fire Relay: Volt free 500mA @ 24V (max load)Auxiliary Output: 24VDC (300mA fused)Environment: Working Temperature: 0 to 40ºCStorage Temperature: -20 to 60ºCHumidity: 0 - 95%Dimensions MAG2P: 340 x 290 x 100mmDimensions MAG2: 200 x 290 x 80mmWeight: MAG2P - 2.1Kg MAG2 - 2.7KgDimensions: Length: 80mm x Height: 290mmWeight: 2.7KgWarranty: 3 Years

Expert Electrical

ESP MAG2 2 Zone Fire Panel
