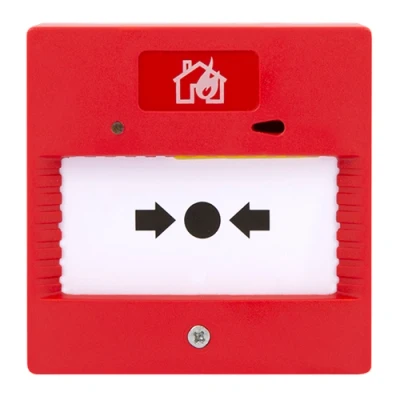

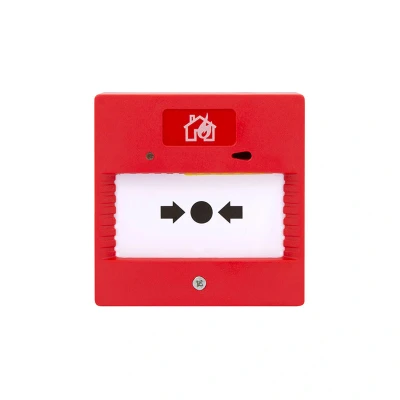

ESP Call Point for MAGDUO

ESP
ESP Call Point for MAGDUO

Prices from

24.94

	£ 24.94	To Shop
	£ 28.53	To Shop

Description

Electrical World MAGDUO Call Point Resettable manual call point Built-in End of Line function Device base includedTechnical Specification:Dimensions: Width: 87mmHeight: 87mmFlush: 25mmSurface Depth: 53mmTemperature Range: Operating Temperature: -10°C to +50°CVoltage Ranges: DC Output from Mains Powered Panel: 25.5 to 35V DCDC Output from Battery Powered Panel: 20 to 26V DCOperating Current (Typical): Quiescent: 50 uAEnd of line ON if applicable (in addition to Quiescent): 720 uAAlarm Activated: 16.5 mALED Operation: Alarm Indication: Pulsed twice per secondEOL indication: 5 second intervalDevice Loading Units: Max Loading Units per Zone: 160 DLUMAGDUO MCP: 16.0 DLUIngress Protection : IP Rating: IP 21CDimensions:

Compare webshops (2)

Shop

Price

£ 24.94

To Shop

£ 28.53

To Shop

Description (2)

Electrical World

MAGDUO Call Point Resettable manual call point Built-in End of Line function Device base includedTechnical Specification:Dimensions: Width: 87mmHeight: 87mmFlush: 25mmSurface Depth: 53mmTemperature Range: Operating Temperature: -10°C to +50°CVoltage Ranges: DC Output from Mains Powered Panel: 25.5 to 35V DCDC Output from Battery Powered Panel: 20 to 26V DCOperating Current (Typical): Quiescent: 50 uAEnd of line ON if applicable (in addition to Quiescent): 720 uAAlarm Activated: 16.5 mALED Operation: Alarm Indication: Pulsed twice per secondEOL indication: 5 second intervalDevice Loading Units: Max Loading Units per Zone: 160 DLUMAGDUO MCP: 16.0 DLUIngress Protection : IP Rating: IP 21CDimensions:

Expert Electrical

ESP Resettable Surface Call Point
