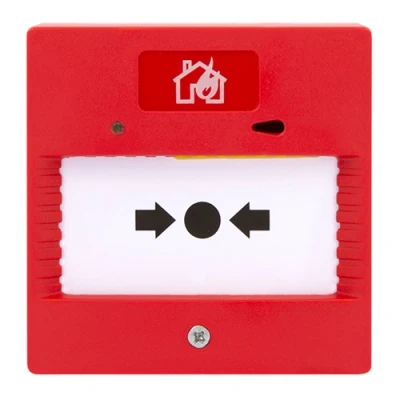

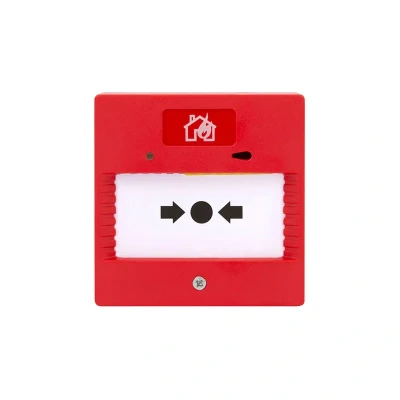

ESP IP65 Call Point for MAGDUO

ESP
ESP IP65 Call Point for MAGDUO

Prices from

44.71

	£ 44.71	To Shop
	£ 53.24	To Shop

Description

Electrical World MAGDUO Call Point IP55IP65 Ingress protection Resettable manual call point Built-in End of Line function Device base includedTechnical Specification:Dimensions: Width: 87mmHeight: 87mmDepth: 70mmTemperature Range: Operating Temperature: -10°C to +50°CVoltage Ranges: DC Output from Mains Powered Panel: 25.5 to 35V DCDC Output from Battery Powered Panel: 20 to 26V DCOperating Current (Typical): Quiescent: 50 uAEnd of line ON if applicable (in addition to Quiescent): 720 uAAlarm Activated: 16.5 mALED Operation: Alarm Indication: Pulsed twice per secondEOL indication: 5 second intervalDevice Loading Units: Max Loading Units per Zone: 160 DLUMCP: 16.0 DLUIngress Protection : IP Rating: IP65

Compare webshops (2)

Shop

Price

£ 44.71

To Shop

£ 53.24

To Shop

Description (2)

Electrical World

MAGDUO Call Point IP55IP65 Ingress protection Resettable manual call point Built-in End of Line function Device base includedTechnical Specification:Dimensions: Width: 87mmHeight: 87mmDepth: 70mmTemperature Range: Operating Temperature: -10°C to +50°CVoltage Ranges: DC Output from Mains Powered Panel: 25.5 to 35V DCDC Output from Battery Powered Panel: 20 to 26V DCOperating Current (Typical): Quiescent: 50 uAEnd of line ON if applicable (in addition to Quiescent): 720 uAAlarm Activated: 16.5 mALED Operation: Alarm Indication: Pulsed twice per secondEOL indication: 5 second intervalDevice Loading Units: Max Loading Units per Zone: 160 DLUMCP: 16.0 DLUIngress Protection : IP Rating: IP65

Expert Electrical

ESP Resettable IP65 Call Point
