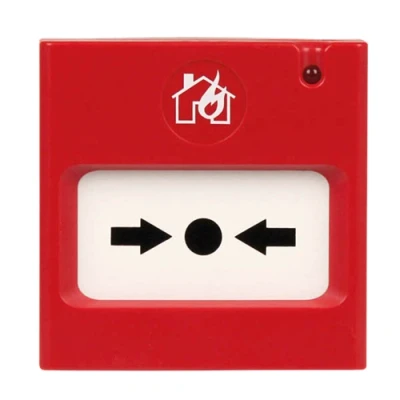

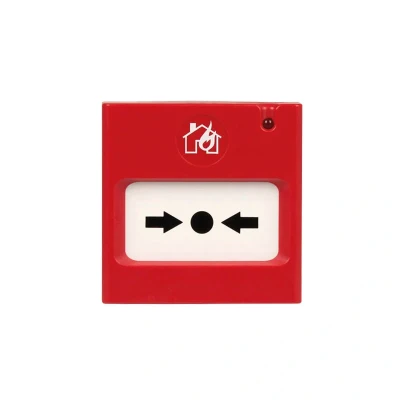

ESP Manual Call Point

ESP
ESP Manual Call Point

Prices from

39.28

	£ 39.28	To Shop
	£ 46.74	To Shop

Description

Electrical World Addressable Red Manual Call PointResettable call point Certified to EN54-11-A Built in isolator IP40 Rated Optional protective plastic coverTechnical Specification:Operating Voltage Range: 15-30VDC (Nom 27VDC)Consumption in Quiescent State No Communications: 125uA@27VDCConsumption with Comunication: 160uA@27VDCConsumption in Fire Mode: 3mA Type of the Working Element: Ressettable (flexible)Type,according to EN54-11: AWire Gauge for terminals: 0.4mm² - 2.0mm²Operating temperature: -10°C to +60°CRelative Humidity Resistance: (93±3)% @40°CProtection: IP40Weight: -175g Dimensions: 90x90x57mmMaterial (plastic),colour: ABS,red

Compare webshops (2)

Shop

Price

£ 39.28

To Shop

£ 46.74

To Shop

Description (2)

Electrical World

Addressable Red Manual Call PointResettable call point Certified to EN54-11-A Built in isolator IP40 Rated Optional protective plastic coverTechnical Specification:Operating Voltage Range: 15-30VDC (Nom 27VDC)Consumption in Quiescent State No Communications: 125uA@27VDCConsumption with Comunication: 160uA@27VDCConsumption in Fire Mode: 3mA Type of the Working Element: Ressettable (flexible)Type,according to EN54-11: AWire Gauge for terminals: 0.4mm² - 2.0mm²Operating temperature: -10°C to +60°CRelative Humidity Resistance: (93±3)% @40°CProtection: IP40Weight: -175g Dimensions: 90x90x57mmMaterial (plastic),colour: ABS,red

Expert Electrical

ESP Addressable Manual Call Point
