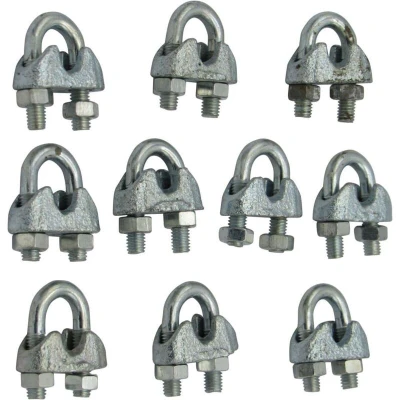

Galvanised Wire Rope Grips Clamp 5MM x10 (Bulldog Cable Commercial DIN741)

General description Our 5MM Wire Rope Grips are manufactured from mild steel with a galvanised coating for enhanced corrosion resistance. These grips are designed for creating loops in wire rope assemblies or for temporary joins, making them ideal for rigging setups on boats and various applications on land. Each pack contains 10 grips, suitable for 5MM wire rope. Technical specifications Product Code: SFCOMG05 Product Weight: 0.14 kg Finish: Galvanised Quantity: 10 Dimensions: A: 13 mm B: 6.2 mm C: 11 mm D: 4.6 mm E: 23.8 mm F: 9.2 mm G: 22 mm Installation Prior to fitting, grease the threads on the nuts and bolts. Maintain a spacing of at least 6 times the diameter of the rope between grips. Ensure the grip is oriented correctly, with the 'u' bolt on the unloaded end of the rope. Tighten each nut evenly and in turn to achieve the recommended torque settings. After installation, leave unused for 24 hours and re-check torque settings, re-tightening if necessary. After the first
