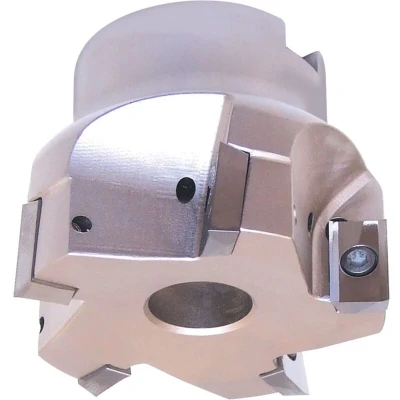

Indexa 63MM XP 90C Shell Mill

ManoMano

Indexa: 63MM XP-90C Shell Mill XP-90C Shell Mills For APKT 16 Inserts Positive 90 approach milling cutter, using size 16 inserts allowing depth passes and high feed per teeth. Plasma Ion coating offers longer tool life and greater hardness that is more resistant to wear. Through coolant as standard. Feed Per Tooth (Fz) mm: 0.10 - 0.30. MPN: IND1393940K EAN: 5036140029545 63MM XP-90C Shell Mill Attributes: Arbor Hole Diameter: 22mm Coolant Delivery: Coolant Through Cutting Edge Angle: 90° Depth of Cut: 8mm Height: 50mm ISO Designation: XP-90C 63mm Insert Holding Type: Centre Screw Clamping Insert Shape: Parallelogram Insert Size: 1604 Insert Style: APKT APXT MFR Part No.: 920.063PIZ/C Maximum Cutting Diameter: 63mm Milling Application: Shouldering Number of Inserts: 5 Toolholder Material: Steel Toolholder Style: Shell Mill

Zoro Tools

XP-90C Shell Mills For APKT 16 Inserts Positive 90 approach milling cutter, using size 16 inserts allowing depth passes and high feed per teeth. Plasma Ion coating offers longer tool life and greater hardness that is more resistant to wear. Through coolant as standard. Feed Per Tooth (Fz) mm: 0.10 - 0.30.
