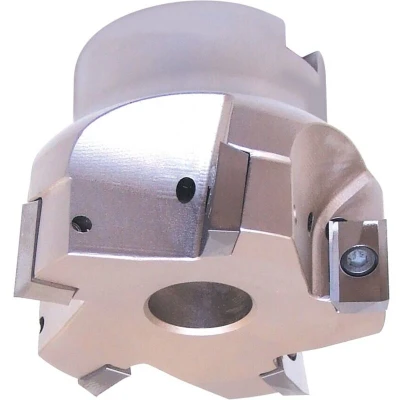

Indexa 80MM XP 90C Shell Mill

ManoMano

Indexa: 80MM XP-90C Shell Mill XP-90C Shell Mills For APKT 16 Inserts Positive 90 approach milling cutter, using size 16 inserts allowing depth passes and high feed per teeth. Plasma Ion coating offers longer tool life and greater hardness that is more resistant to wear. Through coolant as standard. Feed Per Tooth (Fz) mm: 0.10 - 0.30. MPN: IND1393960K EAN: 5036140029552 80MM XP-90C Shell Mill Attributes: Arbor Hole Diameter: 27mm Coolant Delivery: Coolant Through Cutting Edge Angle: 90° Depth of Cut: 8mm Height: 50mm ISO Designation: XP-90C 80mm Insert Holding Type: Centre Screw Clamping Insert Shape: Parallelogram Insert Size: 1604 Insert Style: APXT APKT MFR Part No.: 920.080PIZ/C Maximum Cutting Diameter: 80mm Milling Application: Shouldering Number of Inserts: 6 Toolholder Material: Steel Toolholder Style: Shell Mill

Zoro Tools

XP-90C Shell Mills For APKT 16 Inserts Positive 90 approach milling cutter, using size 16 inserts allowing depth passes and high feed per teeth. Plasma Ion coating offers longer tool life and greater hardness that is more resistant to wear. Through coolant as standard. Feed Per Tooth (Fz) mm: 0.10 - 0.30.
