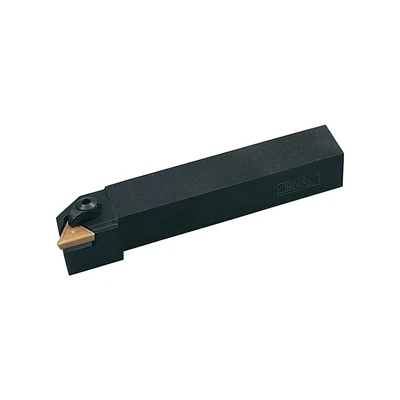

Indexa MTJNR 2020K16 External Toolholder
Description
ManoMano
Indexa: MTJNR 2020K16 External Toolholder 93 approach for negative triangular inserts. MPN: MTJNR2020K16 EAN: 5036140080232 MTJNR 2020K16 External Toolholder Attributes: Approach Angle: 93° Clearance Angle: 0° Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 20mm Head Length (l2): 34mm ISO Designation: MTJNR 2020K16 Insert Cutting Edge Length: 16.00mm Insert Holding Type: Top Clamp & Pin Lock Insert Inscribed Circle: 9.52mm Insert Shape: Triangular° Insert Size: 1604 Insert Style: TN_A TN_G Inserts Included: None MFR Part No.: MTJNR2020K16 Overall Length (l1): 125mm Shank Height (h): 20mm Shank Material: Steel Shank Style: Offset Shank Width (b): 20mm Side to Cutting Tip (f): 25mm Toolholder Style: MTJN
Description
(2)
Indexa: MTJNR 2020K16 External Toolholder 93 approach for negative triangular inserts. MPN: MTJNR2020K16 EAN: 5036140080232 MTJNR 2020K16 External Toolholder Attributes: Approach Angle: 93° Clearance Angle: 0° Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 20mm Head Length (l2): 34mm ISO Designation: MTJNR 2020K16 Insert Cutting Edge Length: 16.00mm Insert Holding Type: Top Clamp & Pin Lock Insert Inscribed Circle: 9.52mm Insert Shape: Triangular° Insert Size: 1604 Insert Style: TN_A TN_G Inserts Included: None MFR Part No.: MTJNR2020K16 Overall Length (l1): 125mm Shank Height (h): 20mm Shank Material: Steel Shank Style: Offset Shank Width (b): 20mm Side to Cutting Tip (f): 25mm Toolholder Style: MTJN
Zoro Tools93 approach for negative triangular inserts.
