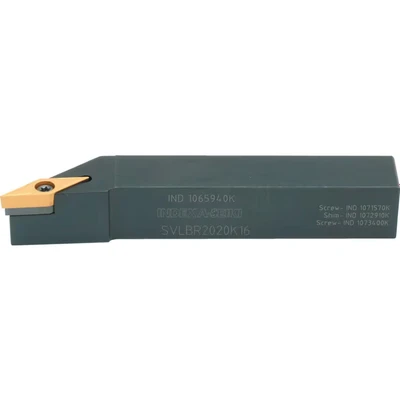

Indexa SVLBR 2020K16 External Toolholder

ManoMano

Indexa: SVLBR 2020K16 External Toolholder 95 approach for 5 positive 35 rhombic inserts. MPN: SVLBR2020K16 EAN: 5036140081321 SVLBR 2020K16 External Toolholder Attributes: Approach Angle: 95° Clearance Angle: 5° Coolant Delivery: External Cutting Direction: Left Hand Cutting Height (h1): 20mm Head Length (l2): 42mm ISO Designation: SVLBL 2020K16 Insert Cutting Edge Length: 16mm Insert Holding Type: Screw-On Insert Inscribed Circle: 9.52mm Insert Shape: 35° Rhombic Insert Size: 1604 Insert Style: VB_A VB_M VB_T Inserts Included: None MFR Part No.: SVLBR2020K16 Neck Length: 42mm Overall Length (l1): 125mm Set Type: Individual Toolholder Shank Height (h): 20mm Shank Material: Steel Shank Style: Offset Shank Width (b): 20mm Side to Cutting Tip (f): 25mm Toolholder Style: SVLB

Zoro Tools

95 approach for 5 positive 35 rhombic inserts.
