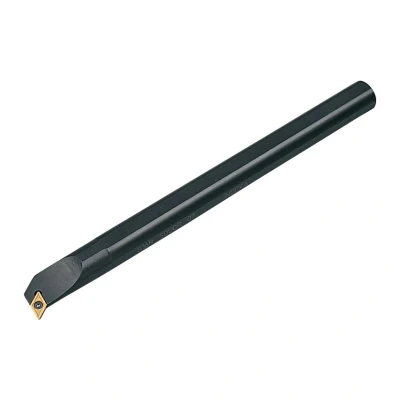

Indexa S20S SDUCR 11 Boring Bar
Description
ManoMano
Indexa: S20S SDUCR 11 Boring Bar 93 approach for 7 positive 55 rhombic inserts. MPN: IND1067720K EAN: 5036140081871 S20S SDUCR 11 Boring Bar Attributes: Approach Angle: 93° Centre to Cutting Tip: 13mm Clearance Angle: 7° Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 9mm ISO Designation: S20S SDUCR 11 Insert Cutting Edge Length: 11.6mm Insert Holding Type: Screw-On Insert Inscribed Circle: 9.52mm Insert Shape: 55° Rhombic Insert Size: 11T3mm Insert Style: DC_Tmm Inserts Included: None MFR Part No.: 106-772 Minimum Bore Diameter (D): 24mm Neck Length (l2): 35mm Number of Bars in Set: N/A None Overall Length (l1): 250mm Set Type: Individual Boring Bar Shank Diameter (d): 20mm Shank Height (h): 18mm Shank Material: Steel Toolholder Style: DC_T
Description
(2)
Indexa: S20S SDUCR 11 Boring Bar 93 approach for 7 positive 55 rhombic inserts. MPN: IND1067720K EAN: 5036140081871 S20S SDUCR 11 Boring Bar Attributes: Approach Angle: 93° Centre to Cutting Tip: 13mm Clearance Angle: 7° Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 9mm ISO Designation: S20S SDUCR 11 Insert Cutting Edge Length: 11.6mm Insert Holding Type: Screw-On Insert Inscribed Circle: 9.52mm Insert Shape: 55° Rhombic Insert Size: 11T3mm Insert Style: DC_Tmm Inserts Included: None MFR Part No.: 106-772 Minimum Bore Diameter (D): 24mm Neck Length (l2): 35mm Number of Bars in Set: N/A None Overall Length (l1): 250mm Set Type: Individual Boring Bar Shank Diameter (d): 20mm Shank Height (h): 18mm Shank Material: Steel Toolholder Style: DC_T
Zoro Tools93 approach for 7 positive 55 rhombic inserts.
