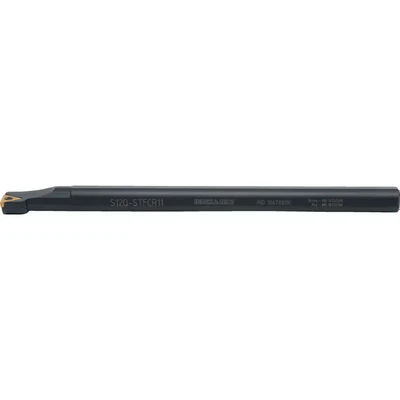

Indexa S20S STFCR 11 Boring Bar
Description
ManoMano
Indexa: S20S STFCR 11 Boring Bar 90 approach for 7 positive triangular inserts. MPN: IND1067940K EAN: 5036140081949 S20S STFCR 11 Boring Bar Attributes: Approach Angle: 90° Centre to Cutting Tip: 13mm Clearance Angle: 7° Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 9.00mm ISO Designation: S20S STFCR 11 Insert Cutting Edge Length: 11.00mm Insert Holding Type: Screw-On Insert Inscribed Circle: 6.35mm Insert Shape: Triangle Insert Size: 1102mm Insert Style: TC_Tmm Inserts Included: None MFR Part No.: S20S-STFCR11 Minimum Bore Diameter (D): 24.00mm Neck Length (l2): 25.00mm Number of Bars in Set: N/A None Overall Length (l1): 250.00mm Set Type: Individual Boring Bar Shank Diameter (d): 20.00mm Shank Height (h): 18.00mm Shank Material: Steel Toolholder Style: STFC
Description
(2)
Indexa: S20S STFCR 11 Boring Bar 90 approach for 7 positive triangular inserts. MPN: IND1067940K EAN: 5036140081949 S20S STFCR 11 Boring Bar Attributes: Approach Angle: 90° Centre to Cutting Tip: 13mm Clearance Angle: 7° Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 9.00mm ISO Designation: S20S STFCR 11 Insert Cutting Edge Length: 11.00mm Insert Holding Type: Screw-On Insert Inscribed Circle: 6.35mm Insert Shape: Triangle Insert Size: 1102mm Insert Style: TC_Tmm Inserts Included: None MFR Part No.: S20S-STFCR11 Minimum Bore Diameter (D): 24.00mm Neck Length (l2): 25.00mm Number of Bars in Set: N/A None Overall Length (l1): 250.00mm Set Type: Individual Boring Bar Shank Diameter (d): 20.00mm Shank Height (h): 18.00mm Shank Material: Steel Toolholder Style: STFC
Zoro Tools90 approach for 7 positive triangular inserts.
