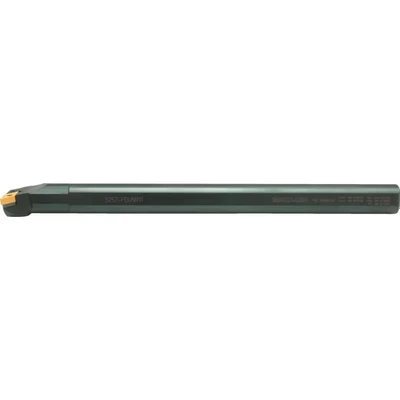

Indexa S25T PDUNR 11 Boring Bar
Description
ManoMano
@@@YeYpjoU2Qio1Dw6mYtIWvBrSbKvUj3iC@@@: S25T PDUNR 11 Boring Bar 93 approach for 55 negative rhombic inserts. MPN: IND1066940K EAN: 5036140081550 S25T PDUNR 11 Boring Bar Attributes: Approach Angle: 93° Centre to Cutting Tip: 22mm Clearance Angle: 0° Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 15mm ISO Designation: S25T PDUNR 11 Insert Cutting Edge Length: 11.6mm Insert Holding Type: Lever Lock Insert Inscribed Circle: 9.52mm Insert Shape: 55° Rhombic Insert Size: 1104 Insert Style: DN_A DN_G Inserts Included: None MFR Part No.: S25T-PDUNR11 Minimum Bore Diameter (D): 30mm Neck Length (l2): 50mm Number of Bars in Set: N/A None Overall Length (l1): 300mm Set Type: Individual Boring Bar Shank Diameter (d): 25mm Shank Height (h): 25mm Shank Material: Steel Toolholder Style: PDUN
Description
(2)
@@@YeYpjoU2Qio1Dw6mYtIWvBrSbKvUj3iC@@@: S25T PDUNR 11 Boring Bar 93 approach for 55 negative rhombic inserts. MPN: IND1066940K EAN: 5036140081550 S25T PDUNR 11 Boring Bar Attributes: Approach Angle: 93° Centre to Cutting Tip: 22mm Clearance Angle: 0° Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 15mm ISO Designation: S25T PDUNR 11 Insert Cutting Edge Length: 11.6mm Insert Holding Type: Lever Lock Insert Inscribed Circle: 9.52mm Insert Shape: 55° Rhombic Insert Size: 1104 Insert Style: DN_A DN_G Inserts Included: None MFR Part No.: S25T-PDUNR11 Minimum Bore Diameter (D): 30mm Neck Length (l2): 50mm Number of Bars in Set: N/A None Overall Length (l1): 300mm Set Type: Individual Boring Bar Shank Diameter (d): 25mm Shank Height (h): 25mm Shank Material: Steel Toolholder Style: PDUN
Zoro Tools93 approach for 55 negative rhombic inserts.
