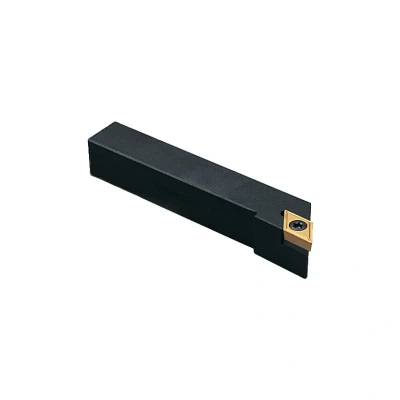

Indexa SDJCL 2525M11 External Toolholder
Description
ManoMano
Indexa: SDJCL 2525M11 Extenal Toolholde 93 approach for 7 positive 55 rhombic inserts. MPN: SDJCL2525M11 EAN: 5036140081062 SDJCL 2525M11 Extenal Toolholde Attributes: Approach Angle: 93° Clearance Angle: 7° Coolant Delivery: External Cutting Direction: Neutral Cutting Height (h1): 8mm Head Length (l2): 22mm ISO Designation: SDNCN 0808D07 Insert Cutting Edge Length: 7mm Insert Holding Type: Screw-On Insert Inscribed Circle: 9.52mm Insert Shape: 55° Rhombic Insert Size: 11T3 Insert Style: DC_T Inserts Included: None MFR Part No.: SDJCL2525M11 Neck Length: 22mm Overall Length (l1): 150mm Set Type: Individual Toolholder Shank Height (h): 25mm Shank Material: Steel Shank Style: Offset Shank Width (b): 25mm Side to Cutting Tip (f): 32mm Toolholder Style: SDNC
Description
(2)
Indexa: SDJCL 2525M11 Extenal Toolholde 93 approach for 7 positive 55 rhombic inserts. MPN: SDJCL2525M11 EAN: 5036140081062 SDJCL 2525M11 Extenal Toolholde Attributes: Approach Angle: 93° Clearance Angle: 7° Coolant Delivery: External Cutting Direction: Neutral Cutting Height (h1): 8mm Head Length (l2): 22mm ISO Designation: SDNCN 0808D07 Insert Cutting Edge Length: 7mm Insert Holding Type: Screw-On Insert Inscribed Circle: 9.52mm Insert Shape: 55° Rhombic Insert Size: 11T3 Insert Style: DC_T Inserts Included: None MFR Part No.: SDJCL2525M11 Neck Length: 22mm Overall Length (l1): 150mm Set Type: Individual Toolholder Shank Height (h): 25mm Shank Material: Steel Shank Style: Offset Shank Width (b): 25mm Side to Cutting Tip (f): 32mm Toolholder Style: SDNC
Zoro Tools93 approach for 7 positive 55 rhombic inserts.
