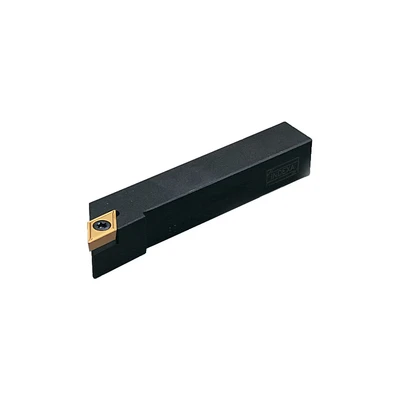

Indexa SDJCR 2525M11 External Toolholder
Description
ManoMano
Indexa: SDJCR 2525M11 Extenal Toolholde 93 approach for 7 positive 55 rhombic inserts. MPN: SDJCR2525M11 EAN: 5036140081055 SDJCR 2525M11 Extenal Toolholde Attributes: Approach Angle: 93° Clearance Angle: 7° Coolant Delivery: External Cutting Direction: Left Hand Cutting Height (h1): 25mm Head Length (l2): 22mm ISO Designation: SDJCL 2525M11 Insert Cutting Edge Length: 11mm Insert Holding Type: Screw-On Insert Inscribed Circle: 9.52mm Insert Shape: 55° Rhombic Insert Size: 11T3 Insert Style: DC_T Inserts Included: None MFR Part No.: SDJCR2525M11 Neck Length: 22mm Overall Length (l1): 150mm Set Type: Individual Toolholder Shank Height (h): 25mm Shank Material: Steel Shank Style: Offset Shank Width (b): 25mm Side to Cutting Tip (f): 32mm Toolholder Style: SDJC
Description
(2)
Indexa: SDJCR 2525M11 Extenal Toolholde 93 approach for 7 positive 55 rhombic inserts. MPN: SDJCR2525M11 EAN: 5036140081055 SDJCR 2525M11 Extenal Toolholde Attributes: Approach Angle: 93° Clearance Angle: 7° Coolant Delivery: External Cutting Direction: Left Hand Cutting Height (h1): 25mm Head Length (l2): 22mm ISO Designation: SDJCL 2525M11 Insert Cutting Edge Length: 11mm Insert Holding Type: Screw-On Insert Inscribed Circle: 9.52mm Insert Shape: 55° Rhombic Insert Size: 11T3 Insert Style: DC_T Inserts Included: None MFR Part No.: SDJCR2525M11 Neck Length: 22mm Overall Length (l1): 150mm Set Type: Individual Toolholder Shank Height (h): 25mm Shank Material: Steel Shank Style: Offset Shank Width (b): 25mm Side to Cutting Tip (f): 32mm Toolholder Style: SDJC
Zoro Tools93 approach for 7 positive 55 rhombic inserts.
Product specifications
