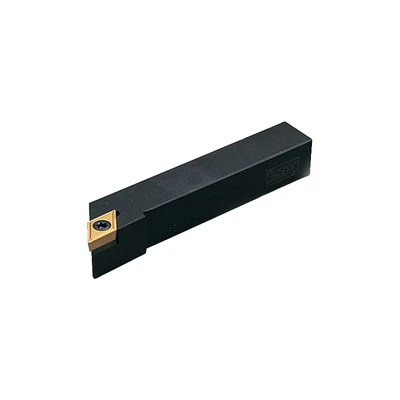

Indexa SDJCR 1616H07 External Toolholder
Description
ManoMano
Indexa: SDJCR 1616H07 Extenal Toolholde 93 approach for 7 positive 55 rhombic inserts. MPN: SDJCR1616H07 EAN: 5036140081017 SDJCR 1616H07 Extenal Toolholde Attributes: Approach Angle: 93° Clearance Angle: 7° Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 16mm Head Length (l2): 20.5mm ISO Designation: SDJCR 1616H11 Insert Cutting Edge Length: 7mm Insert Holding Type: Screw-On Insert Inscribed Circle: 6.35mm Insert Shape: 55° Rhombic Insert Size: 702 Insert Style: DC_T Inserts Included: None MFR Part No.: SDJCR1616H07 Neck Length: 20.5mm Overall Length (l1): 100mm Set Type: Individual Toolholder Shank Height (h): 16mm Shank Material: Steel Shank Style: Offset Shank Width (b): 16mm Side to Cutting Tip (f): 20mm Toolholder Style: SDJC
Description
(2)
Indexa: SDJCR 1616H07 Extenal Toolholde 93 approach for 7 positive 55 rhombic inserts. MPN: SDJCR1616H07 EAN: 5036140081017 SDJCR 1616H07 Extenal Toolholde Attributes: Approach Angle: 93° Clearance Angle: 7° Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 16mm Head Length (l2): 20.5mm ISO Designation: SDJCR 1616H11 Insert Cutting Edge Length: 7mm Insert Holding Type: Screw-On Insert Inscribed Circle: 6.35mm Insert Shape: 55° Rhombic Insert Size: 702 Insert Style: DC_T Inserts Included: None MFR Part No.: SDJCR1616H07 Neck Length: 20.5mm Overall Length (l1): 100mm Set Type: Individual Toolholder Shank Height (h): 16mm Shank Material: Steel Shank Style: Offset Shank Width (b): 16mm Side to Cutting Tip (f): 20mm Toolholder Style: SDJC
Zoro Tools93 approach for 7 positive 55 rhombic inserts.
