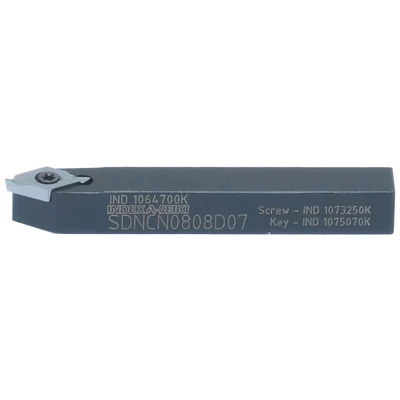

Indexa SDNCN 1212F07 External Toolholder
Description
ManoMano
Indexa: SDNCN 1212F07 Extenal Toolholde 62.5 approach for 7 positive 55 rhombic inserts. MPN: SDNCN1212F07 EAN: 5036140081086 SDNCN 1212F07 Extenal Toolholde Attributes: Approach Angle: 62.5° Clearance Angle: 7° Coolant Delivery: External Cutting Direction: Neutral Cutting Height (h1): 16mm Head Length (l2): 18mm ISO Designation: SDNCN 1616H11 Insert Cutting Edge Length: 11mm Insert Holding Type: Screw-On Insert Inscribed Circle: 6.35mm Insert Shape: 55° Rhombic Insert Size: 702 Insert Style: DC_T Inserts Included: None MFR Part No.: SDNCN1212F07 Neck Length: 18mm Overall Length (l1): 80mm Set Type: Individual Toolholder Shank Height (h): 12mm Shank Material: Steel Shank Style: Straight Shank Width (b): 12mm Side to Cutting Tip (f): 6mm Toolholder Style: SDNC
Description
(2)
Indexa: SDNCN 1212F07 Extenal Toolholde 62.5 approach for 7 positive 55 rhombic inserts. MPN: SDNCN1212F07 EAN: 5036140081086 SDNCN 1212F07 Extenal Toolholde Attributes: Approach Angle: 62.5° Clearance Angle: 7° Coolant Delivery: External Cutting Direction: Neutral Cutting Height (h1): 16mm Head Length (l2): 18mm ISO Designation: SDNCN 1616H11 Insert Cutting Edge Length: 11mm Insert Holding Type: Screw-On Insert Inscribed Circle: 6.35mm Insert Shape: 55° Rhombic Insert Size: 702 Insert Style: DC_T Inserts Included: None MFR Part No.: SDNCN1212F07 Neck Length: 18mm Overall Length (l1): 80mm Set Type: Individual Toolholder Shank Height (h): 12mm Shank Material: Steel Shank Style: Straight Shank Width (b): 12mm Side to Cutting Tip (f): 6mm Toolholder Style: SDNC
Zoro Tools62.5 approach for 7 positive 55 rhombic inserts.
Product specifications
