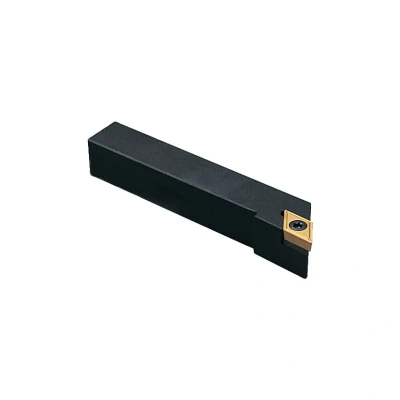

Indexa SDJCL 1212F07 External Toolholder
Description
ManoMano
Indexa: SDJCL 1212F07 Extenal Toolholde 93 approach for 7 positive 55 rhombic inserts. MPN: SDJCL1212F07 EAN: 5036140283282 SDJCL 1212F07 Extenal Toolholde Attributes: Approach Angle: 93° Clearance Angle: 7° Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 12mm Head Length (l2): 18mm ISO Designation: SDJCR 1212F11 Insert Cutting Edge Length: 7mm Insert Holding Type: Screw-On Insert Inscribed Circle: 6.35mm Insert Shape: 55° Rhombic Insert Size: 702 Insert Style: DC_T Inserts Included: None MFR Part No.: SDJCL1212F07 Neck Length: 18mm Overall Length (l1): 80mm Set Type: Individual Toolholder Shank Height (h): 12mm Shank Material: Steel Shank Style: Offset Shank Width (b): 12mm Side to Cutting Tip (f): 16mm Toolholder Style: SDJC
Description
(2)
Indexa: SDJCL 1212F07 Extenal Toolholde 93 approach for 7 positive 55 rhombic inserts. MPN: SDJCL1212F07 EAN: 5036140283282 SDJCL 1212F07 Extenal Toolholde Attributes: Approach Angle: 93° Clearance Angle: 7° Coolant Delivery: External Cutting Direction: Right Hand Cutting Height (h1): 12mm Head Length (l2): 18mm ISO Designation: SDJCR 1212F11 Insert Cutting Edge Length: 7mm Insert Holding Type: Screw-On Insert Inscribed Circle: 6.35mm Insert Shape: 55° Rhombic Insert Size: 702 Insert Style: DC_T Inserts Included: None MFR Part No.: SDJCL1212F07 Neck Length: 18mm Overall Length (l1): 80mm Set Type: Individual Toolholder Shank Height (h): 12mm Shank Material: Steel Shank Style: Offset Shank Width (b): 12mm Side to Cutting Tip (f): 16mm Toolholder Style: SDJC
Zoro Tools93 approach for 7 positive 55 rhombic inserts.
