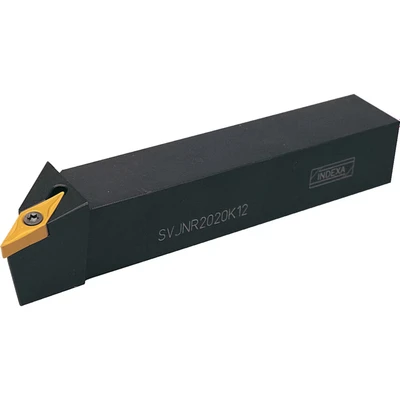

Indexa SVJNR 2020K12 External Toolholder
Description
ManoMano
Indexa: SVJNR 2020K12 Extenal Toolholde 93 approach for 35 negative rhombic inserts. MPN: IND1065830K EAN: 5036140081284 SVJNR 2020K12 Extenal Toolholde Attributes: Approach Angle: 93° Clearance Angle: 0° Coolant Delivery: External Cutting Direction: Left Hand Cutting Height (h1): 20mm Head Length (l2): 22mm ISO Designation: SVJNR 2020K12 Insert Cutting Edge Length: 12mm Insert Holding Type: Screw-On Insert Shape: 35° Rhombic Insert Size: 12T3 Insert Style: VN_G Inserts Included: None Neck Length: 22mm Overall Length (l1): 125mm Set Type: Individual Toolholder Shank Height (h): 20mm Shank Material: Steel Shank Style: Straight Shank Width (b): 20mm Side to Cutting Tip (f): 25mm Toolholder Style: SVJN
Description
(2)
Indexa: SVJNR 2020K12 Extenal Toolholde 93 approach for 35 negative rhombic inserts. MPN: IND1065830K EAN: 5036140081284 SVJNR 2020K12 Extenal Toolholde Attributes: Approach Angle: 93° Clearance Angle: 0° Coolant Delivery: External Cutting Direction: Left Hand Cutting Height (h1): 20mm Head Length (l2): 22mm ISO Designation: SVJNR 2020K12 Insert Cutting Edge Length: 12mm Insert Holding Type: Screw-On Insert Shape: 35° Rhombic Insert Size: 12T3 Insert Style: VN_G Inserts Included: None Neck Length: 22mm Overall Length (l1): 125mm Set Type: Individual Toolholder Shank Height (h): 20mm Shank Material: Steel Shank Style: Straight Shank Width (b): 20mm Side to Cutting Tip (f): 25mm Toolholder Style: SVJN
Zoro Tools93 approach for 35 negative rhombic inserts.
